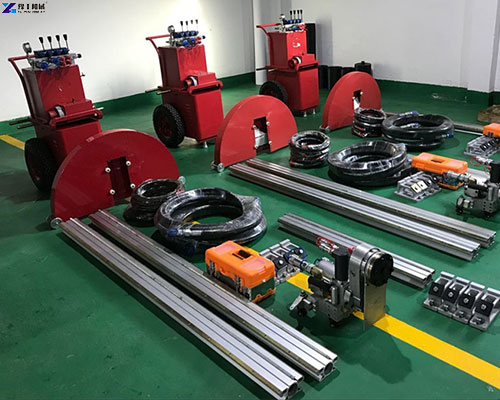

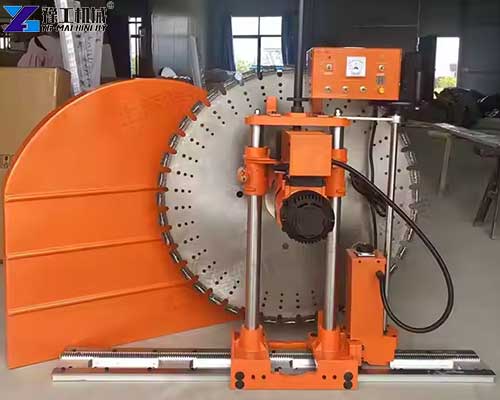

Track mounted concrete wall saw is a specialized application for cutting concrete walls, beams, and columns. A hydraulic wall saw consists of two main parts: a hydraulic power station and a hydraulic saw head. We place the hydraulic power station on the ground to provide power for the saw head. And the saw head carries out cutting operations on the wall. YG brand hydraulic wall saws have been sold to Australia, Singapore, Saudi Arabia, Brunei, Israel, Brazil, the Philippines, India, the United States and other places. If you need it, please contact us to get the latest price of the equipment!
Track Mounted Concrete Wall Saw Parameters
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |

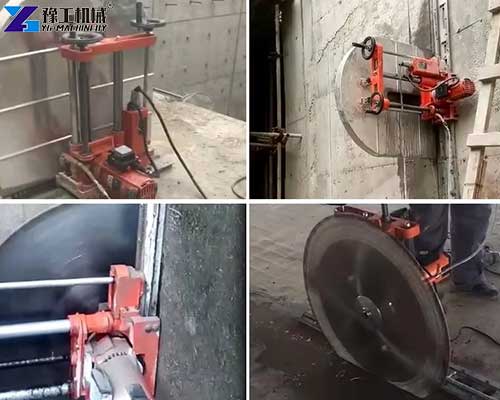

The Customer Purchased Hydraulic Concrete Wall Saw
The customer purchased YG700 hydraulic track mounted concrete wall saws. He is from a well-known construction company in Singapore and decided to purchase several advanced hydraulic wall saws. To improve its construction efficiency and quality of work. After comparing the wall saws from several factories, the customer finally chose the hydraulic wall saw from YG Equipment Co. The customer said that the hydraulic wall saw purchased this time can meet the company’s demand for high-precision and high-efficiency cutting. We are very happy to cooperate with the customer!

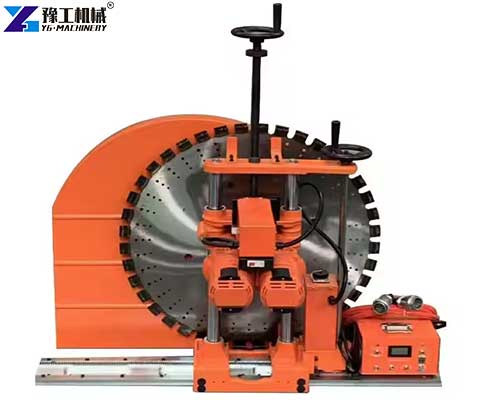

5 Features of Concrete Wall Saw Cutting Machine
- The construction efficiency of hydraulic wall saw is high, 15-20 times more than the traditional excision power process. It can meet the cutting needs of large-scale projects and improve the bidding advantage.
- The operation of the track mounted concrete wall saw is simple, only one power source can complete all the actions, reducing labor intensity.
- Safe and reliable operation, the machine has an overload protection function.
- The hydraulic power system of the equipment, more reliable and stable, is conducive to protecting the user’s own safety.
- hydraulic wall saw small size, compact structure design for cutting the operating environment of low space requirements.

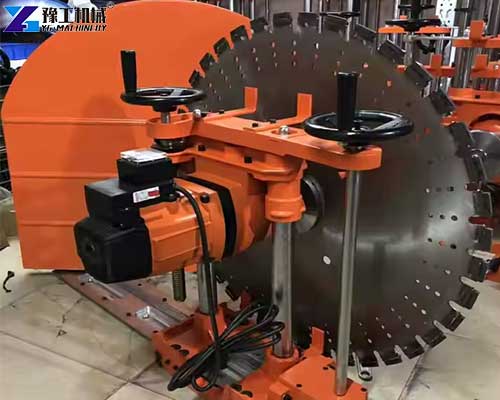

Wall Saw for Sale from YG Manufacturer
YG is a professional manufacturer of cutting and breaking equipment. We provide a series of related products. For example, hydraulic track mounted concrete wall saws, electric wall saws, high-frequency wall saws, hydraulic rope saws, electric rope saws, stone wire saws, and tracked rope saws for concrete cutting series. There are also splitters for stone and wood, hydraulic rock splitters, log splitters, wood crushers, and so on. Since the establishment of the company, we have been committed to providing customers with high-quality products while providing perfect service. So that we can get more customers support and can cooperate with them for a long time. Many customers who buy our equipment say they like our products, which are exactly the machines they need.YG welcomes you to visit our factory. Click to get detailed information on the equipment!
