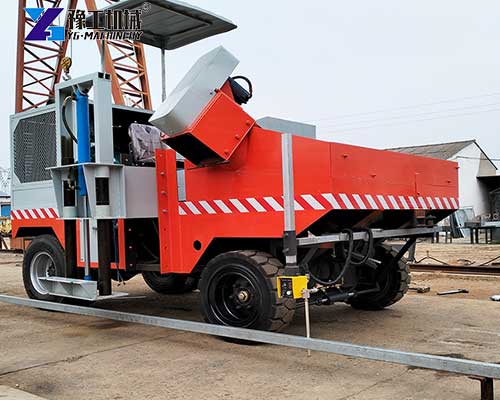

The concrete curb machine for sale is like a magical craftsman, directly at the construction site, “transforming” fresh concrete into a curb. Unlike the traditional method of prefabrication before installation, it can make the construction process more efficient and save manpower and material resources. Because of this, it can be seen everywhere at various road construction sites. And there are more and more concrete curb machines for sale on the market. YG provides a variety of curb slipform machines. Click to get the factory price of the machine!
Concrete curb machine for sale parameter
| Model | YG20 | YG30 | |
| Length*Width*Height | 5200*2400*2800mm | 5200*4100*2900mm | |
| Unladen mass | About 7000kg | The deadweight is greater, the crawler grip is raised, the construction stability is improved, the climbing and sliding formwork flatness, and the slope is free from interference from external factors | |
| Construction scope | Width ≤ 2000mm (road shoulder, ditch), height ≤ 600mm (kerbstone, curbstone) | Width ≤ 2000mm Height ≤ 1100mm | |
| Hopper volume | 1m³ | 0.5m³ | |
| engine | Rated power | 65kw | Inline 4-cylinder turbocharged diesel engine (for high altitude areas, increased power output) |
| Operating voltage | AC380v | ||
| Startup form | Electric start | ||
| Rated speed | 1500rpm | ||
| Heat dissipation form | Water cooling | ||
| Molding method | High-frequency vibrator (suitable for plastic concrete) | Formed shoulders and side ditches have higher strength | |
| Attached vibration motor (suitable for dry, hard concrete) | Can be paved with curbstones and higher curbstone heights | ||
| Automatic leveling system (imported DLS, optional) | Leveling range ±40mm | Imported components, temperature compensation, overvoltage, and overcurrent protection | |
| Steering form | Dual automatic steering system (imported DLS, standard) | Imported components, temperature compensation, overvoltage, and overcurrent protection | |
| Manual steering wheel (hydraulic steering gear) | |||
| Minimum turning radius | 6800mm | ||
| Paving and transfer speed | 1m-10m/min | Frequency conversion speed regulation can achieve a wide range of stepless adjustment of paving and transfer speed | |
| Travel drive form | Full-time four-wheel drive | When the road slope is ≤5%, a fully loaded 15m3 tank truck can be used for construction, and the slipform machine connection construction can be realized. | |
| Screw feeder drive type | High torque hydraulic gerotor motor | Ensure the continuous feeding of concrete, the screw feeder will not be stuck by large stones, and the concrete will be mixed twice to improve the workability of the concrete. | |
Functions of the slipform curb machine
- Flexible shaping: The curb slip form machine is equipped with a variety of high-precision molds. Whether it is a straight curb or a winding curved curb, it can be easily created to meet different road design requirements.
- Efficient fabrication: It comes with a professional fabrication system. When working, the concrete can be evenly laid to the designated position to ensure the stability of the quality of each curbstone and avoid uneven quality.
- Precise operation: During the operation, the operator can accurately adjust the various parameters of the equipment according to the actual construction needs to ensure the accuracy of the construction.
What are the application scenarios of the slipform curb machine?
Taking two models of the YG series (YG20, YG30) as examples, we introduce the main application scenarios of the slipform curb machine with actual parameters.

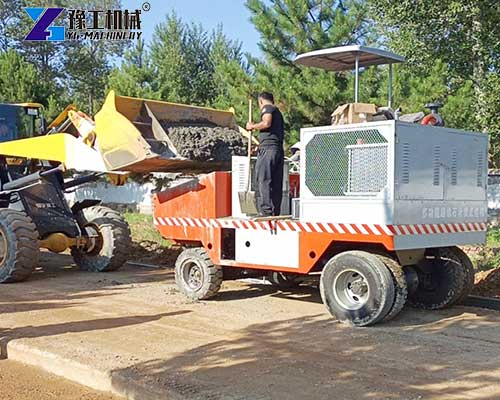

1. Curb Construction for Highways and Urban Roads
This is the most typical application of a slipform curb machine. It can complete one-time slipform forming for hard shoulders on expressways, as well as side stones and flat stones on urban roads.

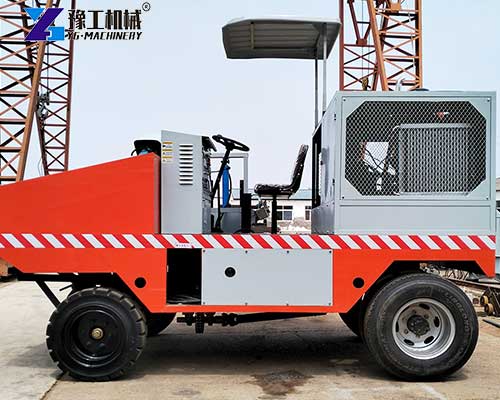

YG20: Suitable for shoulders, ditches, and ordinary curbstone with a width ≤2000mm and height ≤600mm. Its overall dimension is 5200×2400×2800mm, and the total weight is about 7000kg. With full-time four-wheel drive and a turning radius of 6.8m, it works flexibly on common highways and municipal roads. Fitted with high-frequency vibrators, it is applicable for plastic concrete, delivering a smooth surface and neat lines after forming.

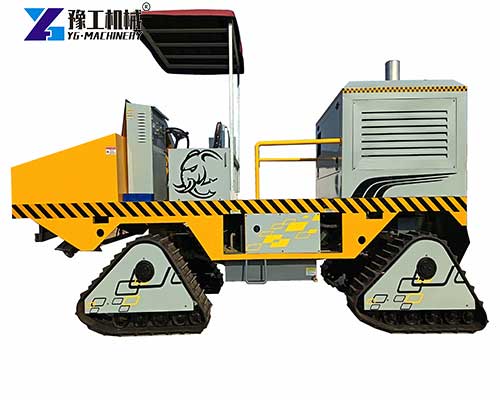

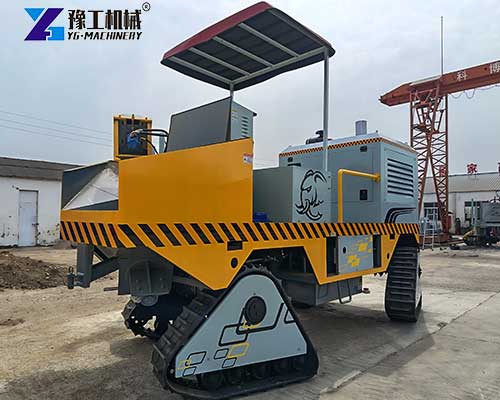

YG30: Designed for tall curbstone or crash barrier bases with height ≤1100mm. It has a heavier body and tracks with a strong grip for excellent construction stability. It hardly slides sideways on steep slopes or soft ground. It provides stronger adhesion after forming and meets the requirements for taller and wider curb structures.
2. Slipform Pouring for Drainage Ditches and Side Ditches
For trapezoidal and rectangular drainage ditches along highways, farmland irrigation channels, and other projects, the concrete curb extruder replaces manual formwork to realize continuous operation.
YG20: It constructs side ditches with a width ≤2000mm and a height ≤600mm. Equipped with a 1m³ large-capacity hopper, its screw feeder is driven by a high-torque hydraulic motor. It feeds materials steadily without being blocked by large aggregates, and mixes concrete secondarily to improve workability.
YG30: It has a 0.5m³ hopper and is powered by an inline four-cylinder turbocharged diesel engine, which delivers stronger power output, especially in high-altitude areas. The formed ditches feature higher strength. When the road slope is ≤5%, it can work together with a 15m³ full-load tanker to achieve continuous feeding and non-stop construction.
3. Auxiliary Facilities for Rural Roads and Community Internal Roads
A large number of small curbstones, lane dividers, and planting pool boundaries are needed on rural roads, scenic trails, and community roads. The concrete curb extruder is an ideal choice thanks to its small turning radius and flexible steering system.
YG20: The minimum turning radius is 6800mm. It comes with a dual automatic steering system (imported DLS, standard configuration) and a manual steering wheel (hydraulic steering gear), enabling smooth operation on winding rural roads and inside communities. The optional automatic leveling system (imported DLS) has an adjustment range of ±40mm to adapt to uneven road surfaces.
YG30: It is also equipped with imported automatic leveling and steering components, with functions of temperature compensation and overvoltage & overcurrent protection. It runs stably even under high temperature or voltage fluctuation. The variable frequency speed regulation allows stepless speed adjustment from 1-10m/min for paving and relocation, adapting to different road conditions and concrete setting time.
4. Special Projects at High Altitudes and on Complex Terrain
Traditional slipform curb machines usually suffer from reduced engine power and poor concrete setting conditions at high altitudes, which lowers working efficiency. The YG30 is specially optimized for such working conditions.
YG30: Powered by an inline four-cylinder turbocharged diesel engine, it maintains sufficient power output without power loss at high altitudes. It adopts attached vibration motors for forming and suits stiff concrete. It guarantees compactness and flatness of the curbstone even on steep slopes or in low-temperature environments. With a maximum forming height of 1100mm, it is perfect for retaining walls and drainage facilities on mountain roads.
Benefits of using a concrete curb extruder
- Reduce costs: The use of a curb slipform machine for construction can save the production process of prefabricated curbstones and does not require a lot of effort in transportation and installation, and both material costs and labor costs can be greatly reduced.
- Improve quality: On-site casting and forming can make the curbstone and the road base fit more closely, greatly improve the stability and durability of the road, and extend the service life of the road.
- Shorten the construction period: The concrete curb machine for sale has a fast construction speed. Compared with traditional construction methods, it can complete the project faster and put it into use quickly.
How do you buy a suitable kerb cutting machine?
- Determine the needs: According to the size of your project, the shape of the curb, and the budget, clarify the production capacity and functional configuration of the required equipment.
- Investigate the brand: Do more market research and choose a brand with a good reputation and leading technology in the industry so that the product quality and after-sales service are more guaranteed.
- Compare prices: Through various channels, understand the concrete curb machine prices of different manufacturers and find the most cost-effective equipment among many products.
YG concrete curb machine price
As a well-known brand in the industry, YG provides a variety of models of concrete curb machines for sale. Different models of equipment can meet the needs of multiple scenarios and are reasonably priced. By buying equipment from YG, not only can you get cost-effective products, but also enjoy considerate and comprehensive after-sales service.
If you are looking for a high-quality curb slipform machine, YG must be your ideal choice!
