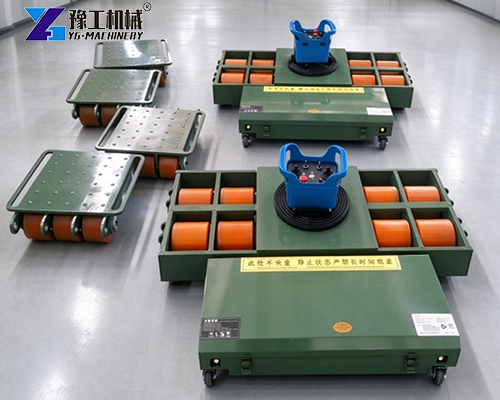

Heavy Machinery Moving Skates – Electric Remote-Controlled Heavy-Load Moving Solution

What does it take to move a 40-ton CNC machining centre across a factory floor? You might say a crane, a fleet of forklifts, or a dozen operators pulling chains. But there is now a simpler, safer, and more efficient solution: electric remote-controlled heavy machinery moving skates — one single operator can handle heavy-duty equipment of 60 tons up to over 100 tons from a safe distance of 50 metres away.

Free Quote Now

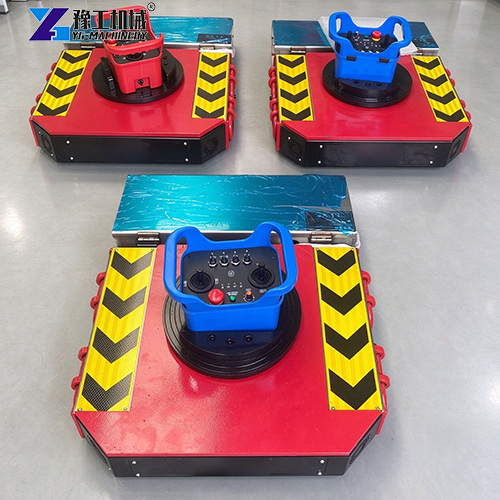

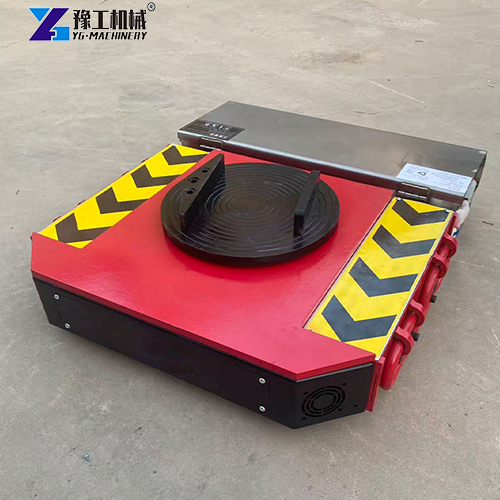

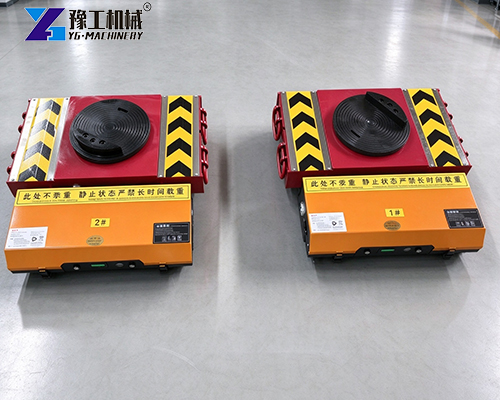

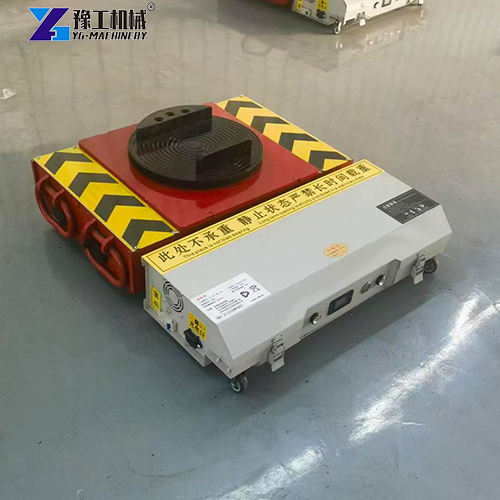

Heavy Machinery Moving Dollies Specifications

Model	10T	20T	25T	30T	40T	50T	60T
Motor	500W ×2Brake 104Flange reinforced gearbox	750W ×2Brake 104Flange reinforced gearbox	1000W ×2Brake 104Flange reinforced gearbox	1200W×2 Brake 120 Flange reinforced gearbox	1500W ×2Brake 120Flange reinforced gearbox	2000W ×2Brake 120Flange reinforced gearbox	3000W ×2Brake 120Flange reinforced gearbox
Controller	D2T80ADual-channel driver	D2T80ADual-channel driver	D2T100ADual-channel driver	D2T100ADual-channel driver	D2T200ADual-channel driver	D2T200ADual-channel driver	D2T220ADual-channel driver
Remote Controller	C7 remote controller	C6/C7 remote controller or industrial remote controller	C7 remote controller	C7 remote controller	C6/C7 remote controller or industrial remote controller	C7 remote controller or industrial remote controller	C7 remote controller or industrial remote controller
Battery Spec	48v 30Ah ternary lithium	48V 60Ah ternary lithium or LFP	48V 60Ah ternary lithium or LFP	48V 60Ah ternary lithium or LFP	48V 120Ah ternary lithium or LFP	48V 120Ah ternary lithium or LFP	48V 120 Ah ternary lithium
Working Current	25A	60A	60A	60A	120A	120A	120A
Charging Current	54.6	54.6	54.6	54.6	54.6	54.6	54.6
Drive Wheel	80*120×4High-hardness fully imported polyurethane	90×135×4High-hardness fully imported polyurethane	90×135×4High-hardness fully imported polyurethane	90×135×4High-hardness fully imported polyurethane	140×140×4High-hardness fully imported polyurethane	140×140×4High-hardness fully imported polyurethane	140×140×8High-hardness fully imported polyurethane
Gear	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module	Luomengtai high-strength gear3-module
Plate Material	10mmQ355 manganese steel plate	10mmQ355 manganese steel plate	12mmQ355 manganese steel plate	12mmQ355 manganese steel plate	16mmQ355 manganese steel plate	16mmQ355 manganese steel plate	16mmQ355 manganese steel plate
Traction Weight	10T	20T	25T	30T	40T	50T	60T
Load Capacity	10T	10T	12.5T	15T	20T	25T	30T
Overall Dimension	500x550x145mm	670x620x165mm	670x635x165mm	740x640x185mm	810x800x182mm	810x800x182mm	1110x800x185mm
Disc Flange	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter	2900MM diameter
Travel Speed	2-10 m/min adjustable	2-10 m/min adjustable	2-10 m/min adjustable	2-10 m/min adjustable	2-10 m/min adjustable	2-10 m/min adjustable	2-10 m/min adjustable
Continuous Working Time	2-3 hours	3-4 hours	3-4 hours	3-4 hours	4-5 hours	4-5 hours	4-5 hours

Model Selection Suggestions

• Tonnage: Match the skate traction capacity according to your heaviest single load. For multi-unit linked operation, distribute total load evenly across each unit and reserve a 20 % safety margin.
• Slope: All models handle slopes of 3-15°. For long-term operation on slopes over 10°, choose 40T or higher models for extra torque reserve.
• Ground Conditions: High-hardness, fully imported polyurethane drive wheels perform well on concrete, steel plates, and unpaved industrial floors. For heavy-wear working conditions, select 40T or above models with large-size 140×140 wheels.
• Space Constraints: The 10T and 20T units have the most compact footprint and fit narrow aisles. 360° steering on all models removes concerns over turning radius.
• Multi-Unit Linkage: When moving extra-long or unbalanced loads, use identical-model units and specify industrial remote controllers (C6 option or dedicated industrial controller) for synchronous multi-unit operation.

In-Stock Models Ready to Ship – See What’s Available

4 Key Operational Advantages of Electric Remote-Controlled Heavy Machinery Moving Skates

1. Remote-controlled operation for easy observation: The industrial remote system offers a 50-metre effective control range. Operators stand at good viewing angles to monitor load movement and surrounding obstacles.
2. In-situ steering for fewer adjustments: 360-degree zero-radius in-place steering cuts repeated forward-and-reverse movements for re-positioning in tight spaces. Keep clear rotation clearance for the load.
3. Adjustable travel speed for precise positioning: Travel speed adjusts from 2 – 10 m/min. Adjust speed for different routes and positioning requirements for smooth transfer and accurate placement.
4. Multi-unit linkage for simpler coordination: Wireless synchronous control for multiple units reduces complex manual coordination. Ideal for moving extralong, extra-wide, and irregular heavy objects as one whole unit.

Hardware Build That Defines Industrial-Grade Reliability

Beyond operational benefits, hardware specs decide whether your equipment serves you for ten years or becomes a high-maintenance burden after six months.

The full range — from 10T through 60T — adopts a dual-motor design with integrated brakes. Motor sets range from entry-level 500W pairs up to top-end 3000W pairs. Power is transmitted via high-strength alloy 3-module gears inside flange-mounted heavy-duty gearboxes. This is not consumer-grade transmission hardware. Flange mounting eliminates failures caused by belt slip and chain stretch. Brakes hold loads safely on slopes under powerloss conditions. The 3-module gear profile spreads contact stress across wider tooth surfaces and extends service life under repeated heavy-load cycles.

Chassis are built with Q355 manganese steel plates — 10 mm for 10T & 20T, upgraded to 12 mm for 25T & 30T, and 16 mm for 40T and above. This steel grade is also used for bridge structures and pressure vessels, selected to resist permanent deformation under concentrated heavy point loads.

Drive wheels use fully imported high-hardness polyurethane, chosen for balanced load capacity, wear resistance, and ground-friendly contact pressure. Wheel sets grow with model sizes: smaller units have four wheels; 50T and 60T versions upgrade to eight wheels to spread ground pressure.

Power comes from 48V lithium-ion battery packs — ternary lithium or LiFePO4, based on required cycle life. Capacities range from 30AH for the 10T unit up to 120AH for 40T-60T models, supporting 2-5 hours of continuous operation. LiFePO4 is recommended for heavy-duty multi-shift daily work thanks to better thermal stability and longer calendar life.

Control systems feature dedicated dual-channel drivers (D2T80A to D2T220A, matched per model) and industrialgrade wireless remote controllers. C7 standard remote controller comes as standard for all units. C6 or dedicated industrial remote controllers are available for applications requiring multi-unit synchronous linkage. Stepless adjustable travel speed of 2-10 m/min gives operators fine control for both fast transport and pinpoint positioning.

Lock In Today’s Factory Price – Request a Quote Now

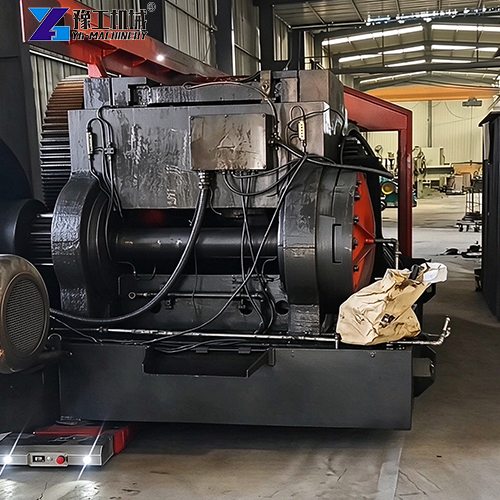

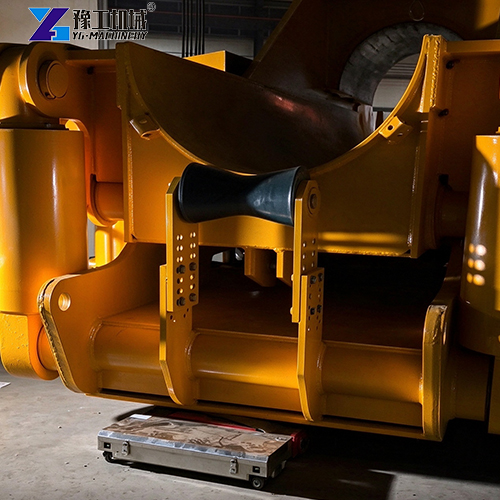

Application Scenarios for Skates for Moving Heavy Objects

Factories & Precision Manufacturing

Challenge: Relocate a 30-ton CNC machining centre inside an active production workshop, without disrupting adjacent production lines or damaging precision components.

Solution: Place two 20T heavy machinery moving skates underneath the machine’s reinforced base. An operator guides the load through a 3-metre-wide aisle via wireless remote control with millimetre-level positioning accuracy. 360° steering removes repeated realignment steps.

Result: The machine travels 60 metres and aligns onto its new foundation in under two hours. Zero disruption to production lines, no external crane contractor required.

Warehousing & Logistics Hubs

Challenge: Move 15-ton steel coils from storage bays to loading zones in a warehouse with limited forklift capacity and incomplete overhead crane coverage.

Solution: Position a set of skates for moving heavy objects (30T model) under each steel coil cradle. Electric drive handles the 5 % gradient from warehouse floor to loading platform. Remote operation keeps personnel away from rolling heavy loads.

Result: Single-coil transfer time drops from 45 minutes (forklift plus manual guidance) to under 10 minutes, with greatly improved on-site personnel safety.

Engineering & Energy Construction

Challenge: Position a 50-ton power transformer inside a substation building; roof structure restrictions block crane access.

Solution: Four 15T heavy machinery moving skates run under wireless synchronous linkage mode, delivering a combined 60-ton traction capacity. The skates travel up an 8-degree concrete access ramp into the building and place the transformer accurately onto its foundation plinth.

Result: The transformer is positioned within ±5 mm tolerance. Costs for hiring mobile cranes (over £40,000) plus two-week lead-time for site preparation are avoided.

Contact us Now

Frequently Asked Questions about Heavy Machinery Moving Skates

Q: What is the maximum load these heavy machinery moving dollies can handle?

Single-unit traction capacity ranges from 10T to 60T depending on model. Loads over 60T are handled by wireless-linked multiple skates. Multi-unit setups regularly complete moving jobs above 100T in real-world projects.

Q: Can one single person really operate heavy machinery moving dollies independently?

Yes. Industrial-grade wireless remotes (max. 50-metre control distance) are built for one-person operation. One operator manages direction, speed, and positioning from a safe viewing spot. Standard moving tasks need no extra ground crew.

Q: How do load moving skates handle slopes and uneven floors?

All models are rated for 3-15° climbing capacity, fitted with high-torque flange gearboxes and fully imported polyurethane drive wheels. They work reliably on concrete, steel plates, and unpaved industrial ground. For sustained work on steep slopes above 10°, select 40T or higher units for extra torque reserve.

Q: What does routine maintenance for skates for moving heavy objects cover?

Regular maintenance includes battery charge-discharge cycle management, polyurethane drive-wheel wear inspection, gearbox lubrication, and remote-controller battery replacement. Luomeng-titanium high-strength gears and Q355 manganese-steel chassis are engineered for long service life in heavy-duty industrial environments.

Q: Can these heavy machinery moving skates work outdoors?

Yes. Battery-electric design, sealed motor housings, and multiple polyurethane wheel options suit outdoor construction sites, energy-project sites, and port zones, including unpaved ground conditions.

Q: What battery options are available?

Ternary lithium and LiFePO4 are offered for different models. LiFePO4 delivers longer cycle life and higher thermal stability — recommended for heavy-duty daily use. Battery capacities range from 30AH (10T model) to 120AH (40T-60T models).

Pick the Right Heavy Machinery Moving Skates for Your Jobs

Whether you relocate CNC machining centres, transfer steel coils inside warehouses, or set transformers inside substations, electric remote-controlled heavy machinery moving dollies deliver single-operator, precision-controlled heavy-load moving solutions as an alternative to cranes, forklifts and manual rigging crews.

Full-range single-unit capacity from 10T to 60T, 50-metre wireless remote control, 360° zero-radius steering and modular multi-unit synchronous linkage — these load moving skates address nearly all heavy-load moving challenges across manufacturing, logistics and energy-construction sectors.

Not sure which model fits your load, slope, and site conditions? Contact us with your application details. We will recommend the optimal configuration and send you a detailed quotation.
