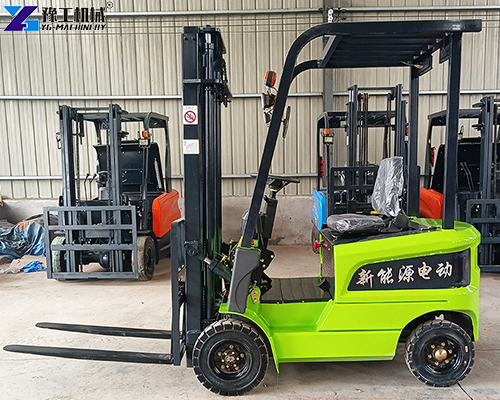

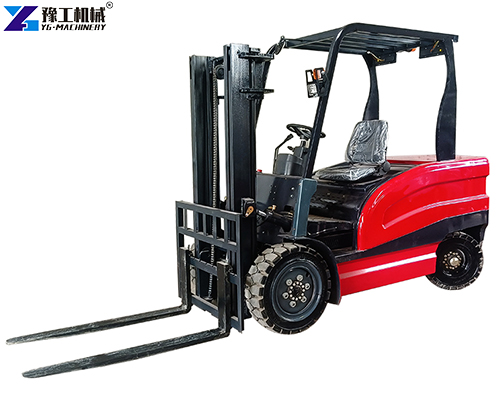

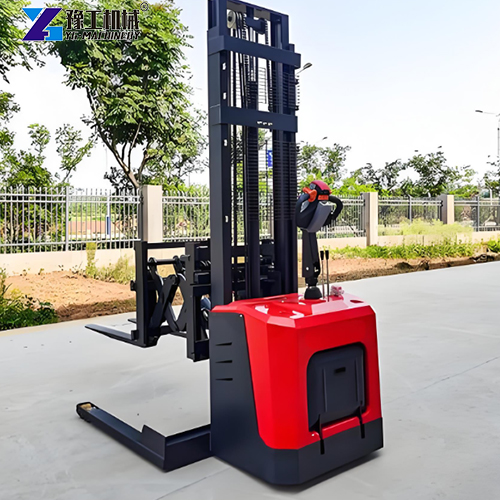

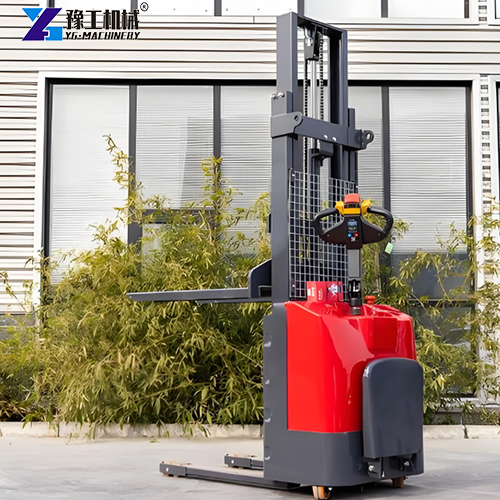

An electric stacker lift is a battery-powered industrial vehicle. It realizes the lifting and lowering of goods through the hydraulic system, and relies on electric drive to move in warehouses, workshops, and other places. Compared with traditional manual stacker trucks, the electric stacker forklift is easier to operate, greatly improves handling efficiency, and can adapt to a variety of complex operating environments. Get factory price forklift trucks, contact us now!
Parameters of the Electric Stacker Lift
| Product model | YG-40E |
| Drive mode | Electric |
| Driving mode | Stand-up |
| Rated load | 1500kg |
| Load center | 600mm |
| Wheelbase | 1480mm |
| Weight | 720Kg |
| Wheels Tire | Polyurethane wheel |
| Drive wheel size | 250*80mm |
| Front-wheel size | 80*70mm |
| Balance wheel size | 100*40mm |
| Front-wheel width | 530mm |
| Rear wheel width | 650mm |
| Total height (when the fork is lowered to the lowest) | 1950mm |
| Total height (when the fork is raised to the highest) | 4500mm |
| Lifting height | 4000mm |
| Fork height from the ground | 90mm |
| Total length (including pedal) | 2100 (2600)mm |
| Fork length | 1100mm |
| Total width | 850mm |
| Fork width | 180*50*1100mm |
| Adjustable outer width of the fork | 680mm |
| Minimum ground clearance | 30mm |
| Turning radius | 1530mm |
| Mast | 3 masts |
| Performance Travel speed (full load/no load) | 4.5/5.0Km/h |
| Lifting speed (full load/no load) | 100/120mm/s |
| Lowering speed (full load/no load) | 100/100mm/s |
| Braking method | Electromagnetic brake |
| Charger | 24/15 V/A |
| Motor Drive motor power | 0.75Kw |
| Lifting motor power | 2.2Kw |
| Battery voltage/capacity | 24/120V/Ah |

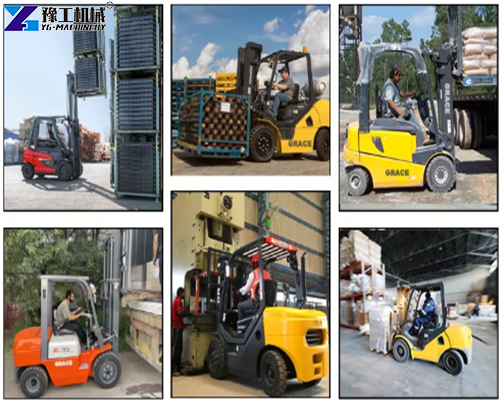

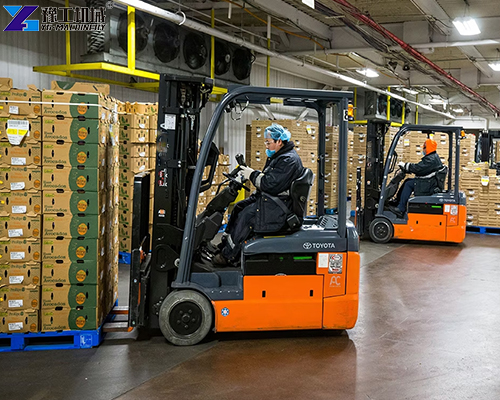

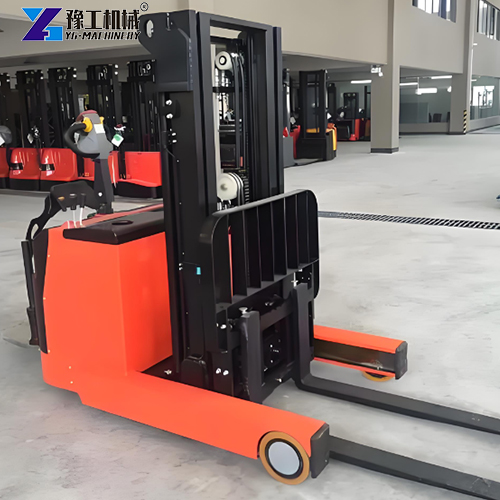

Applications of the Electric Stacker Forklift
An electric stacker lift is widely used for efficient and flexible material handling across various working sites.
- Warehouse Management – Max lifting height hits 4000 mm with a rated load of 1500 kg. It speeds up rack loading, stock replenishment, and outbound delivery to cut the manual workload greatly.
- Logistics Centers – Travel speed reaches 4.5 km/h under full load and 5.0 km/h with no load. It efficiently sorts bulk goods and shortens delivery lead time.
- Production Line Material Supply – Transports raw materials and finished goods precisely at a steady lifting/lowering speed of 100–120 mm/s to keep continuous, smooth production.
- Retail Industry – Ideal for supermarkets and shopping malls. With an overall width of 850 mm and a turning radius of 1530 mm, it flexibly restocks goods and adjusts shelf displays.
The full electric pallet stacker (Model YG-40E, for example) works perfectly for both small workshops and large warehousing & logistics hubs.

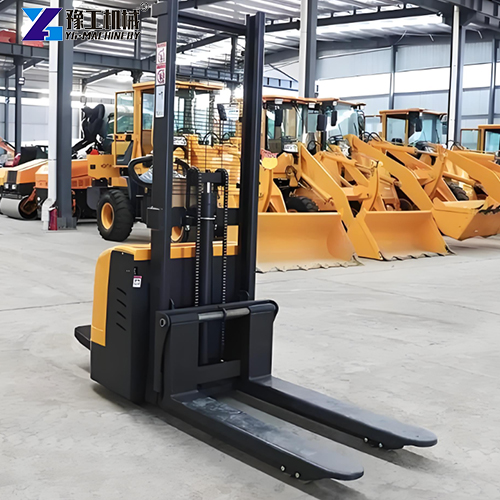

4 Features of the Full Electric Pallet Stacker
- Powerful Power & Safe Cargo Handling – Fitted with a 2.2 kW lift motor and a 0.75 kW drive motor, it easily lifts loads up to 1500 kg. Lifting speed:100–120 mm/s, lowering speed:100 mm/s. Stable lifting protects goods from damage.
- Easy & Flexible Operation – Operate forward, backward, lift, and lower via the control handle only. Its 1530 mm turning radius and 30 mm minimum ground clearance enable smooth travel in narrow aisles.
- Energy-saving & Eco-friendly – Powered by 24 V / 120 Ah storage battery plus electromagnetic brake system, zero exhaust emission to meet green operation standards.
- Compact Body Structure – Overall dimension (with foot platform):2100(2600)×850×1950 mm with PU wheels. Small footprint allows free operation in limited, tight spaces.
How to Operate the Full Electric Pallet Stacker?
- Before operating the electric pallet stacker, you need to check the status of the equipment, including power, hydraulic oil, tires, and so on.
- After starting the equipment, slowly push the control handle to control the traveling speed.
- When lifting and lowering the goods, make sure that the goods are placed smoothly, and pay attention to the surrounding environment during the lifting and lowering process.
- After the operation is completed, park the equipment in the designated location, turn off the power, and clean and maintain the equipment.

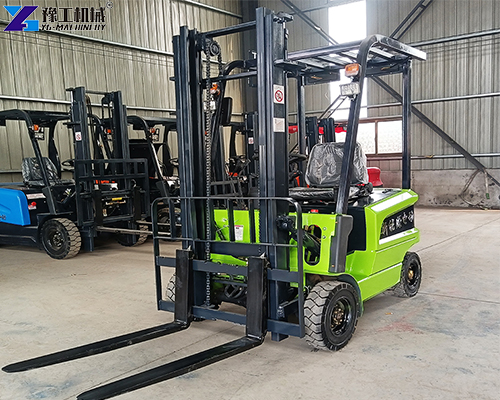

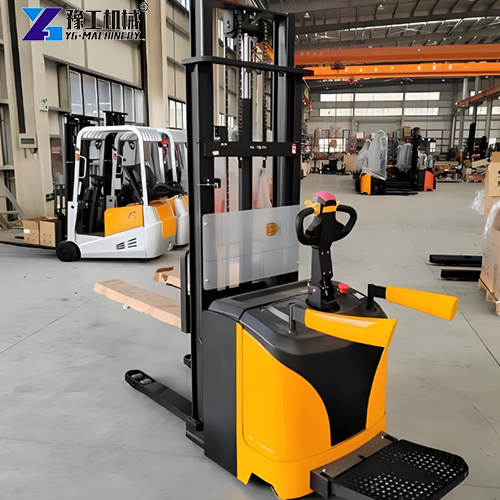

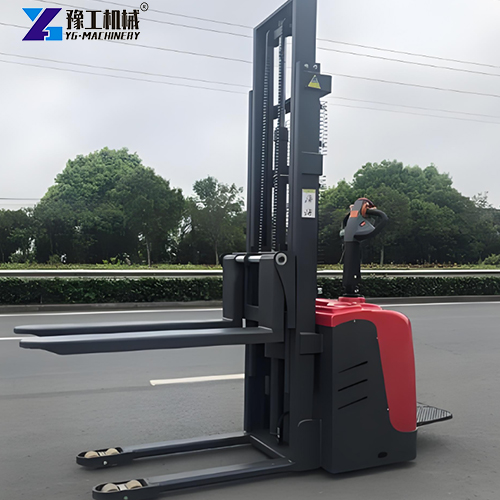

Professional Electric Pallet Stacker for Sale Factory–YG
YG is a professional electric pallet stacker factory with years of experience and advanced technology. The quality and performance of electric stacker lift trucks produced by the factory are reliable and superior, which can meet the diversified needs of different customers. From product research and development, manufacturing, to after-sales service, YG has strict control to provide customers with all-around protection. In the field of modern warehousing and logistics, the electric stacker lift has become an indispensable and important equipment. With excellent performance and convenience, it provides an effective solution for enterprises to improve the efficiency of cargo handling. We also provide you with various lifting platforms, boom lifts, telescopic forklifts, and other material handling equipment!. Choosing YG’s electric stacker forklift is choosing an efficient and reliable warehouse handling solution!
