A road marking machine is a specialized piece of equipment used to create road markings on roads, parking lots, and other surfaces. These markings serve as important visual cues for drivers, pedestrians, and cyclists, helping to ensure safety and smooth traffic flow. There are several types of road marking machines, each with its unique features and uses.

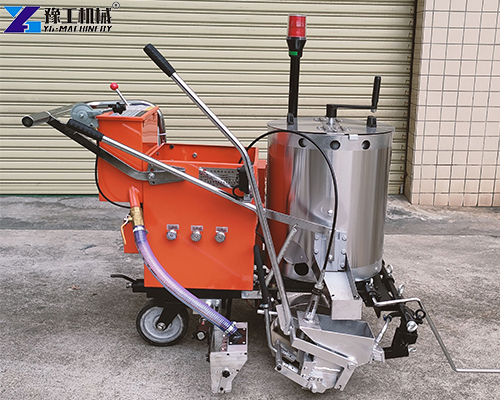

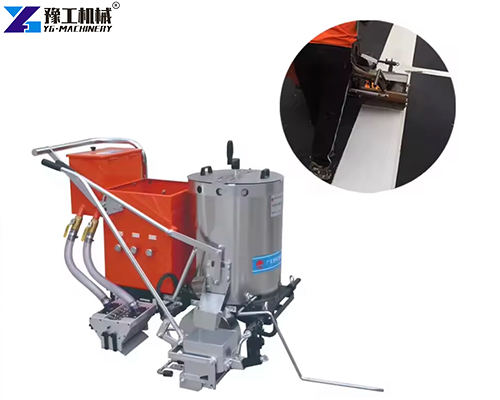

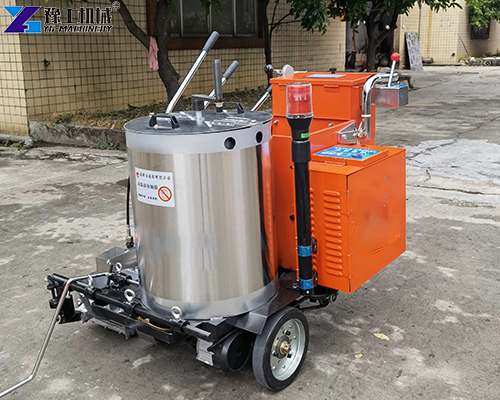

Thermoplastic Road Line Marking Machine for Sale: Introduction
Thermoplastic road marking machines are widely used to create durable and long-lasting road markings. These machines work by heating a special thermoplastic coating to a high temperature, typically around 200°C. The molten coating is then applied to the road surface using a spray gun or doctor blade, creating thick, reflective lines. Thermoplastic road markings offer strong adhesion, excellent weather resistance, and high visibility, making them ideal for high-traffic areas.
Thermoplastic Road Marking Machine Parameter
| Model | YG-360 |
| Thermoplastic Paint Tank | Double stainless steel heating insulation barrels; Capacity 100kg; Plug-in manual mixer device |
| Glass Beads Container | 10kg/box |
| Adjustable Glass Beads Dispenser | Synchronized with the line; Adjustable width: 50mm-200mm |
| Marking Mold | High-precision ultra-thin material; Scraping structure; uniform and even marking line; 150mm standard equipment |
| Knife Under-frame | Carbide with adjustable eccentric sleeve |
| Scope Marking Thickness | 1-2.5mm |
| Tire | Alloy wheel with special heat-resistant rubber; Rear wheel directional steering device ensures moving in a straight line and turning freely |
| Heating Method | Liquefied petroleum gas |
| Marking Width | 50/100/150/200/250/350/400/450 mm (optional) |
| Dimension (L*W*H) | 1250mm*900mm*950mm |
| Weight | 110kg |
Features of Thermoplastic Road Marking Machines
- High Durability: Thermoplastic road markings can withstand heavy traffic, extreme weather conditions, and everyday wear and tear, ensuring long-term visibility and performance.
- Fast Drying: The molten coating dries quickly, allowing roads or areas to be reopened quickly after marking. 3. Excellent Visibility: Glass beads are added to the thermoplastic paint, enhancing its reflective properties and ensuring clear markings even at night or in low-light conditions.
- Adjustable Line Width: Thermoplastic road marking machines can be adjusted to produce varying line widths to meet specific project requirements.

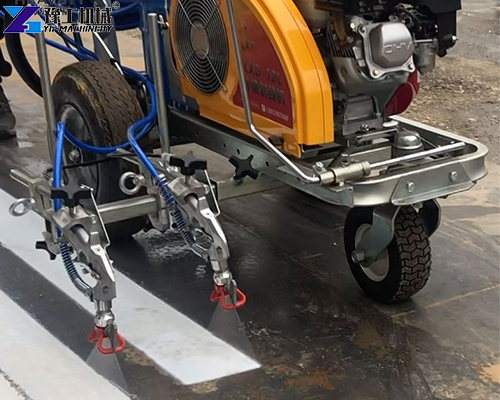

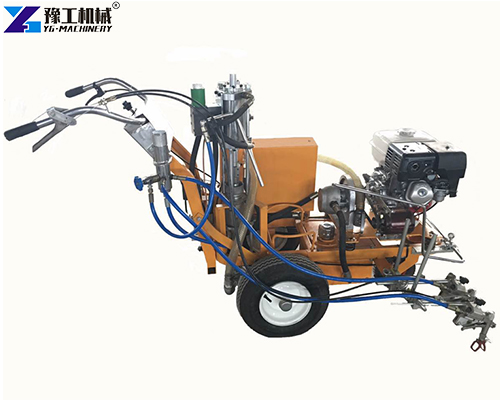

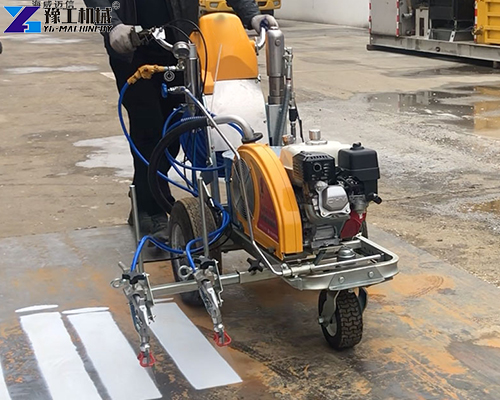

About the Cold Spray Marking Machine
Cold spray road marking machines, also known as airless spray road marking machines, are another popular choice for road marking. These machines use a high-pressure pump to apply liquid paint or coating to the road surface. Cold spray road markings are typically used for temporary or low-traffic areas, as they may not be as durable as thermoplastic road markings. However, they offer several advantages, such as fast application speed and the ability to use a variety of paint types.
Cold Spray Road Marking Machine for Sale Parameter
| Model | YG-8S | YG-8D |
| Motor power | 5.5hp Honda gasoline engine | 5.5hp Honda gasoline engine |
| Plunger pump | Electronic reversing | Automatic Reciprocating Commutation |
| Number of spraying gun | Single gun | Double gun |
| Work mode | Hydraulic | Hydraulic |
| Pressure | 8-12Mpa | 8-12Mpa |
| Unloading flow | 4.8L/min | 8L/min |
| Spray width | 100-300mm | 100-450mm |
| Spray thickness | 0.2-0.4mm | 0.2-0.4mm |
| Size | 1600*800*1200mm | 1600*800*1200mm |
| Weight | 120kg | 120kg |
Advantages of Cold Spray Road Marking Machines
- Fast Application: Cold spray road marking machines apply paint quickly, making road marking projects efficient and time-saving.
- Versatile Application: These machines can use a variety of paints, including water-based and solvent-based paints, providing flexibility in choosing the right marking material for different applications. 3. Low Cost: Cold spray marking is generally more economical than thermoplastic marking, making it suitable for projects with limited budgets.
- Easy Cleaning and Maintenance: Cold spray marking machines are relatively easy to clean and maintain, reducing downtime and maintenance costs.
How to Choose the Right Road Line Marking Machine?
When carrying out road marking construction, equipment selection directly affects construction efficiency, marking quality, and service life. Below are professional selection suggestions based on real construction scenarios.
1. Pick equipment based on marking types
The hot-melt pavement striping machine (YG-360) is for permanent road marking work. It has two stainless steel heat-preserving tanks with a 100kg capacity per tank, plus plug-in manual agitators to stop paint sediment and guarantee even heating. Coating thickness can be adjusted between 1mm and 2.5mm. It fits expressways, national and provincial highways, urban main roads, and other road sections that demand strong wear resistance and long-lasting reflectivity. Moulds ranging from 50mm to 450mm in width are optional as needed, with a standard 150mm mould included.
The cold spray pavement striping machine (YG-8S / YG-8D) works for temporary markings or fast construction with normal-temperature paint. It runs on a 5.5HP Honda gasoline engine with spraying pressure of 8–12MPa, controlling marking thickness at 0.2–0.4mm. The YG-8S model comes with one spray gun and covers widths of 100–300mm. The YG-8D twin-gun version reaches spraying widths of 100–450mm. It is perfect for fast, short-cycle projects such as city roads, community parking lots, and factory floors that require quick construction.
2. Choose equipment based on the construction environment and weather
For hot and rainy regions like coastal southern cities, thermoplastic road marking machines with special synchronous reflective glass bead dispensers are highly recommended. In wet, rainy conditions, standard markings often lose reflective performance when water pools on roads at night. Hot-melt markings paired with high-refractive-index glass beads maintain clear visibility after dark, even when it rains. Meanwhile, the YG-360 is fitted with carbide scrapers and adjustable eccentric sleeves. These deliver uniform coating thickness when working on damp ground and prevent uneven thickness caused by inconsistent surface moisture.
For high-altitude areas or locations with big day-night temperature gaps, focus on the heating system when selecting gear. The YG-360 uses liquefied petroleum gas heating with high thermal efficiency that works well regardless of altitude. For mobile outdoor work, pay attention to wheel setups: the YG-360 has alloy wheel hubs paired with heat-resistant rubber tyres, plus directional steering on rear wheels. This ensures steady straight-line pushing and flexible turning on uncured road surfaces, ideal for long-distance construction covering multiple road sections.
3. Select machines based on construction volume and efficiency targets
For large projects requiring continuous long-distance marking, thermoplastic road line marking machines stand out thanks to their large 100kg insulated tanks. One single paint fill allows continuous marking for over 200 metres (varies with marking width and thickness), cutting downtime from repeated refilling. Its screed coating design forms markings in one pass with high output, suitable for wide, long main road marking jobs.
For short, scattered projects with tight deadlines, cold spray road marking machines offer greater advantages. The twin-gun YG-8D sprays two lines at once and nearly doubles marking speed. Its pump uses automatic reciprocating reversing technology to minimise pressure fluctuations and keep consistent marking widths.
4. Select equipment for marking smoothness and visual finish
Airport runways, sports venues, and high-grade highways require ultra-smooth markings with sharp, clean edges. For these projects, a thermoplastic road line marking machine matched with high-precision ultra-thin screed moulds is advised. This design evenly distributes paint pressure during coating, creating smooth markings with crisp, non-jagged edges for a neat, professional look.
Municipal jobs that frequently switch marking widths benefit most from cold spray road marking machines. No mould changes are required — adjust spray gun pressure and nozzle sizes to modify line widths simply. The operation is quick and flexible. For multi-colour marking tasks, cold spray equipment simplifies colour switching; just clean the paint tank and pipelines to swap colours rapidly.
FAQ about Road Marking Machine for Sale
Q1: How to calculate paint consumption for a hot-melt road marking machine for sale?
A: Regular hot-melt paint comes in 40 bags per ton, 25 kilograms per bag. One bag covers around 5.5 square meters (the number varies slightly based on line width and thickness), so one ton of hot-melt paint can mark about 220 square meters of road lines. For supporting supplies: 4 bags of reflective glass beads are required for each ton of hot-melt paint, plus 1 barrel of primer to prime the road surface and boost adhesion.
Q2: How to calculate paint consumption for a cold spray road marking machine for sale?
A: Cold spray paint is packed into 40 barrels per ton, 25 kilograms per barrel. Each barrel covers roughly 70 square meters with a spray thickness of 0.2–0.4mm. The standard mixing ratio of cold spray paint to thinner is 1:2 (1 part paint mixed with 2 parts thinner). Thinner is available in 7kg or 10kg drums. Adjust the amount appropriately according to actual spray viscosity.
All figures above are theoretical references. Actual consumption will differ slightly due to road surface flatness, marking width, and thickness.
Q3: What marking thickness can the hot-melt model reach? How to adjust thickness?
A: Standard hot-melt marking thickness ranges from 1.5mm to 1.8mm. Adjustment is extremely easy: change the hanging height of the marking hopper to control coating thickness. Lift the hanger up for thinner lines; lower the hanger down for thicker lines. No special tools needed, fast on-site adjustment available.
Q4: What marking thickness and width can the cold spray model reach? How to adjust them?
A: Cold spray marking thickness ranges from 0.3mm to 1.2mm, and spray width is adjustable from 5 to 45 centimeters (50–450mm).Adjustment method: Raise or lower the spray gun to change spray width and thickness. Lift the gun higher for a wider spray range; lower the gun for a narrower range. Flexible operation fits all standard marking requirements.
Q5: What common wearing parts does the hot-melt model have?
A: The following parts are normal consumables that need regular inspection and replacement:
- Copper nozzle (marking hopper outlet): Long-term contact with high-temperature paint causes wear and deformation, ruining marking smoothness.
- Copper sleeve (joint fitting): Rotating movable part with enlarged gaps after long use, lowering marking precision.
- Front / rear wheels: Heat-resistant rubber tyres wear normally when pushed on hot road surfaces.
- Three-way fitting (pipe connector): Connecting piece for liquefied gas pipelines; check tightness regularly.
- Screed blade (coating scraper): Directly scrapes paint on roads, one of the most frequently replaced consumables.
Q6: What common wearing parts does the cold spray model have?
A: Main wearing parts include:
- Spray nozzle: Fast-flowing paint scours the nozzle inner wall, damaging atomization and consistent line width. Inspect and replace after covering a certain spray area.
- Seal fitting (seal part at high-pressure pipe joints): Withstands 8–12MPa high pressure; sealing performance fades over time. Replace in time to stop liquid leakage.
Q7: What daily maintenance tips should be followed during operation?
A: To keep the road marking machine running stably for a long time, follow these suggestions:
- Clear leftover paint right after every construction job (especially the marking hopper and copper nozzle of hot-melt machines) to avoid blockage caused by cooled, hardened paint.
- Regularly check all connecting joints for tightness to prevent loosening.
- Clean paint pipelines and spray guns immediately after using cold spray machines to stop cured paint from clogging nozzles.
- Order one extra set of wearing parts when you first purchase the machine as spare stock. This covers unexpected on-site replacements and prevents project delays while waiting for accessories.
