Not every water well requires a large truck-mounted drilling rig. In fact, most civil, agricultural, and light-commercial drilling projects call for a more practical piece of equipment — one that can pass through gateways, drive into backyards, while still delivering reliable drilling performance. This is the core value of a portable well drilling machine.
Large drilling rigs simply cannot access enclosed or narrow spaces: rural courtyards, basements, narrow alleys, plus indoor work sites commonly found in remote areas. A portable water well drilling equipment solves this problem with a compact structural design, lightweight body, and integrated mobility solutions such as a drawbar plus a wheeled travelling mechanism. It delivers true portability while retaining hydraulic power to drill through soil, clay, sand layers, and soft rock.
Whether you are drilling a domestic drinking-water well, installing boreholes for ground-source heat pump air-conditioning systems, or sinking dewatering wells at construction sites, a portable well drilling machine lets you work in areas physically unreachable for large-size equipment — without sacrificing drilling depth or hole diameter.
Typical Application Scenarios of Small Water Drilling Machine
A small water drilling machine does far more than drill simple domestic water wells. Below are the most-requested working scenarios for buyers:
- Domestic drinking-water wells — supply clean groundwater for rural households and remote residences
- Agricultural irrigation wells — deliver water for small farms, greenhouses and orchards
- Ground-source heat pump air-conditioning wells — drill vertical boreholes for geothermal heating/cooling systems
- Construction dewatering wells — lower groundwater levels before foundation pit excavation or foundation construction
- Drought-relief emergency water wells — rapidly set up water sources in arid zones and emergency situations
- Industrial water wells — provide water supply for small workshops and processing facilities
- Small foundation pile holes — drill support boreholes for structural piles and retaining walls
- Acoustic-testing pipe installation holes — drill monitoring boreholes for geotechnical engineering inspection and testing
Its ability to operate inside narrow or hard-to-reach spaces makes it ideal for small-scale contractors serving scattered rural and suburban clients. It can be towed on trailers for site transfer, and drilling can start within minutes upon arrival.
How to Choose Between Wheeled and Track-type Portable Well Drilling Machine
Track-type:
| Item | Specification |
| Model | YG-HY200 |
| Engine | Diesel |
| Drilling Power | 22HP |
| Walking power | 8HP |
| Max drill depth | 150m |
| Drill diameter | Φ75-Φ300mm |
| Electric start | include |
| Radiator | include |
| Lifting power | 800KG |
| Lifting height | the highest point of 2.5 meters machine |
| Volume | 12 CBM |
| Weight | 1000kg |
Wheel-type:
| Item | Specification |
| Wheel-type | / |
| Model | YG-150 |
| Motor Type | Diesel |
| Power | 22Hp |
| Max drilling depth | 150m |
| Drilling diameter | 75- 325 mm |
| Electric start | include |
| Mud pump | include |
| Lift weight | 800KG |
| Lifting height | max 2.5m |
| Machine weight | 550KG |
Buyers usually start by choosing between wheeled and track-type units. Both are genuine portable drilling rigs, yet they fit drastically different working conditions.

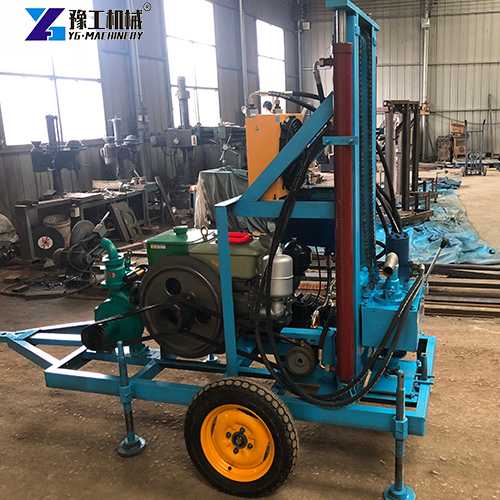

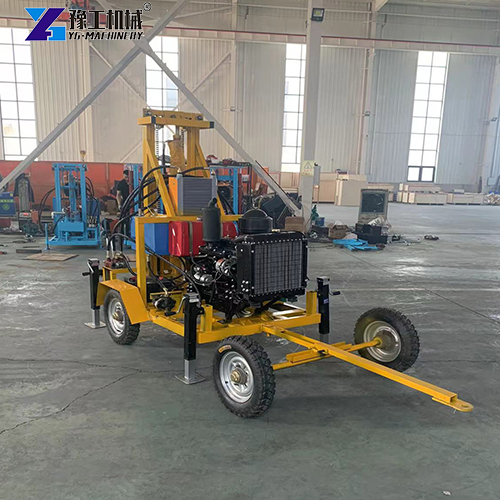

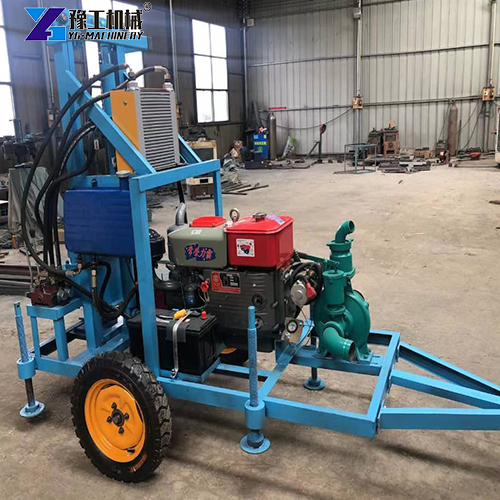

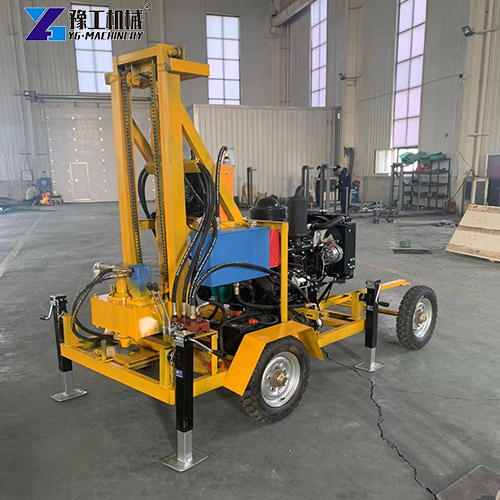

The wheel-type portable well drilling machine (e.g. YG-150) weighs only 550kg. It is easy to tow on public roads for site-to-site transfer and suits users who move frequently over flat or hardened ground. Thanks to the built-in drawbar and axle assembly, you can tow it directly to job sites with a pickup truck or ATV and start work once positioned.

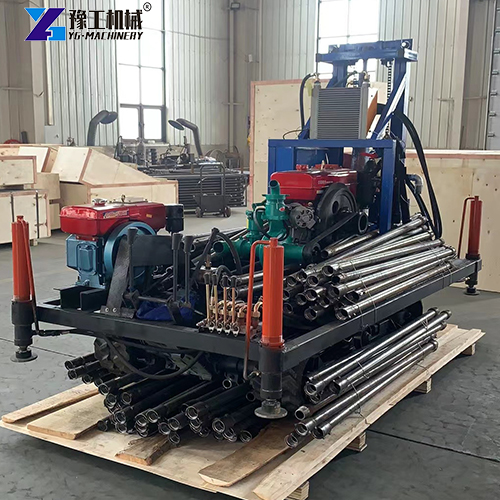

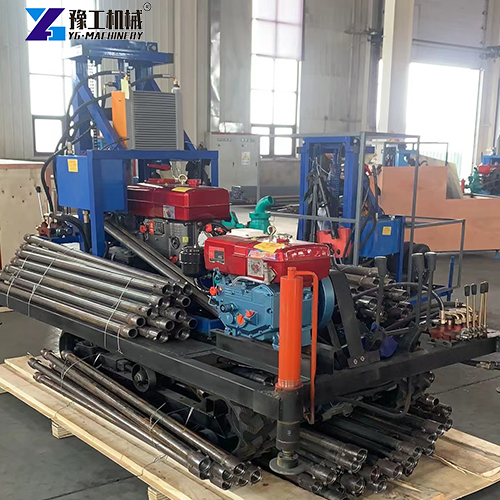

Track-type models (e.g. YG-HY200) deliver outstanding stability on muddy, uneven or sloped terrain. Its track travelling system, driven by an independent 8HP motor, enables self-propelled movement across soft ground where wheeled units would get stuck — perfect for paddy fields, hillside farms and unhardened construction sites. The extra fitted radiator prevents performance drop caused by overheating during long drilling shifts — especially critical under hot-weather conditions.
Quick takeaway: Pick wheel-type if most of your work takes place on hard flat ground and frequent road transfer is needed. Go for track-type for soft soil, slopes, or rough terrain requiring on-site self-positioning.
In-Stock Models Ready to Ship – See What’s Available
4 Factors to Select Portable Water Well Drilling Equipment
Faced with various compact well drilling equipment on the market, evaluate products from four practical dimensions.
Drilling Depth and Hole Diameter
Most portable units offer 150-200 metres drilling depth, sufficient for most geological conditions of domestic drinking-water wells, irrigation wells and geothermal boreholes. Pay close attention to hole-diameter range: confirm rig compatibility if you need boreholes above 300mm for heat-pump installation or small pile foundations. YG-150 supports up to 325mm, YG-HY200 covers up to 300mm.
Mobility and Site Accessibility
This stands as a key selling point of portable drilling rig for farm use. Check for an integrated drawbar, axle, or self-propelled track chassis. Lighter weight brings easier transport; heavier track-mounted units trade partial portability for superior terrain-crossing capability. Also check physical machine dimensions: can it pass standard residential gateways or fit inside basements? Compact footprint often proves decisive for household water well drilling projects.
Power Source and Starting Method
Diesel engines dominate this product category for straightforward reasons: high torque at low RPM, off-grid operation, and convenient on-site maintenance in remote locations. Electric start serves as an important labour-saving feature. Manually cranking diesel engines at the start of long workdays creates unnecessary physical strain. Both YG models come standard with electric start. The YG-HY200 additionally features a hydraulic radiator to avoid overheating-related performance loss under continuous heavy-duty drilling — vital for summer or tropical-region operations.
Built-in Pump for Cuttings and Sand Removal
Rock fragments and sediment generated while drilling must be flushed out of boreholes. An on-board mud pump carries out flushing during drilling, greatly boosting efficiency and guaranteeing borehole quality. This built-in feature removes the need for separate flushing pumps and preserves overall equipment compactness.
Lock In Today’s Factory Price – Request a Quote Now
FAQs about Portable Well Drilling Machine
Q: What is the maximum drilling depth of a portable well drilling machine?
Most portable rigs reach 150-200 metres, covering nearly all demands for domestic water wells, irrigation wells, and geothermal boreholes. Actual achievable depth depends on geological conditions and borehole diameter.
Q: Can a small borewell machine work indoors?
Yes — that counts among its major advantages. Compact-sized and lightweight models such as YG-150 and YG-HY200 operate in courtyards, basements and covered indoor spaces, areas completely inaccessible for large truck mounted rigs.
Q: What differences exist between wheel-type and track-type portable drilling equipment?
The wheel-type unit (e.g. YG-150, 550kg) weighs less, is easy for road towing, and fits flat-ground jobs. The track-type unit (e.g. YG-HY200, 1,000kg) has a self-propelled track chassis and suits soft, muddy or sloped ground. Both deliver largely identical drilling capacity.
Q: Does it require external power supply?
No. These rigs run on on-board diesel engines with electric-start systems for full self-sufficiency. No external power, generator, or grid connection required — ideal for off-grid remote sites.
Q: How soon can drilling start after arriving at a job site?
With the drawbar and all-in-one mobility mechanism, one single operator can position equipment, connect pumps, and commence drilling. Typically, only 15-20 minutes pass from site arrival to drilling startup.
How to Pick Your Suitable Small Borewell Machine
To select the right small borewell machine, match equipment performance with your working environment and well-project requirements. If you need frequent road transfers and handle light-duty assignments — domestic drinking-water wells, small irrigation wells and geothermal probe boreholes at easily-accessible locations — the wheel-type YG-150 delivers great cost-performance at merely 550kg weight, offering 150m drilling depth and borehole diameters up to 325mm.
For complicated terrain, long continuous operating hours, or commercial drilling contracting work including paddy-field sites, hillsides, and construction dewatering wells — the track-mounted YG-HY200 with self-propelled track chassis, integrated radiator, and independent travelling capability delivers consistent, reliable operation.
Whichever unit you choose, you get a small borewell machine engineered for real-world field work: diesel power plus labour-saving electric start, integrated mud pump for efficient cuttings removal, stable sustained hydraulic output, and compact footprint allowing drilling work where large rigs cannot reach.
Need support choosing between wheel-type and track-type versions? Contact us. Share your target drilling depth, geological conditions, and site layout, and we will recommend your most suitable configuration.
