EV charging pile

EV charging pile, also known as electric vehicle charging pile, is the “energy hub” for the development of the new energy vehicle industry. It connects to the vehicle through a standard charging interface and accurately converts the AC or DC power of the power grid into electrical energy suitable for electric vehicle batteries. The charging efficiency of DC fast charging piles is much higher than that of traditional household sockets. Nowadays, from cities to rural areas, car charging piles are reshaping people’s travel and charging habits and have become an indispensable infrastructure for green travel. YG Machinery provides you with high-quality and low-cost charging piles!

Free Quote Now

EV Charging Pile Parameter

Product number		YG-60KW	YG-80KW	YG-120KW
Detailed specification	rated power	60KW	80KW	120KW
Charging equipment	User Interface	7-inch LCD color display touchscreen
	installation	Floor-standing/Down in down out
	Routing mode device size	635*423*1600(mm)
	Input voltage	AC380V±20%
	Input frequency	45~65Hz
	The output voltage	200-750VDC
	Single gun output current range	200V-500V	200V-500V	200V-500V
	The output voltage	0-90A	0-120A	0-160A
	Single gun output current range	200V-750V	200V-750V	200V-750V
	The output voltage	0-60A	0-80A	0-107A
Charging equipment	Single gun output current range	0-112A	0-150A	/
	Cable length	5m
Electrical index	Measurement accuracy	Level 0.5
	Current limit protection value	≥110%
	Voltage regulation accuracy	≤±0.5%
	Steady flow accuracy	≤±1%
	Ripple coefficient	≤±0.5%
	effectiveness	≥94.5%
	Power factor	≥0.99 (50% load or more)
	Harmonic content THD	≤5% (50% load or more)
Feature design	HMI	7-inch LCD color display touch screen, LED indicator
	Charging mode	Auto full / fixed power / fixed amount / fixed time
	payment method	Credit card payment / APP payment /scan code payment
	Communication Interface	Ethernet 2/3/4G (optional)
Safety design	Executive standard	GB\T 20234, GB/T 18487, GB/T 27930, NB\T 33008
	security function	Charge gun temperature detection, overvoltage protection, undervoltage protection protectionshort circuit protectiongrounding protection temperature protection, low-temperature protection, insulation monitoring protectionpolarity reverse connection protection, lightning protection, emergency stop protectionleakage protection
Environmental indicators	Operating temperature	-25°C~+50°C
	Working humidity	5%~95% non-condensing cream
	Working elevation	<3000m
	Protection level	IP54
	cooling method	Forced air cooling
	Noise control	≤60dB
	MTBF	100,000 hours

Free Quote Now

Car Charging Pile’s Application Scenarios

1. In residential areas, property companies and car owners cooperate to install home charging piles, so that they can charge when parking at night and leave in the morning with a full charge. According to statistics, more than 60% of electric car owners choose to charge at home.
2. In the parking lot of a commercial center, EV charging piles can not only attract more consumers, but also bring additional benefits. For example, after a large shopping mall introduced commercial EV charging stations for sale, the average daily charging vehicles reached 50, which improved the utilization rate of the parking lot. 3. The charging piles in the highway service area have solved the “mileage anxiety” of long-distance travel. At present, the coverage rate of charging piles in major highway service areas in my country has exceeded 80%.
3. In places such as bus stations and logistics parks, large commercial EV charging stations for sale can meet the centralized charging needs of electric buses, logistics trucks, etc. This ensures the efficient operation of urban public transportation and logistics transportation. ​

Electric Vehicle Charging Pile’s Structure​

1. The operation display screen outside the charging pile adopts a high-definition touch design, and the interface is simple and clear. People can easily complete the charging mode selection, payment operation, etc., through icon guidance.
2. The built-in charging module uses advanced power electronics technology, with a maximum conversion efficiency of 95%, reducing power loss.
3. The intelligent control system can monitor charging current, voltage, temperature, and other parameters in real time. Once an abnormality is found, the overcurrent protection, overvoltage protection, leakage protection, and other mechanisms will be immediately activated.

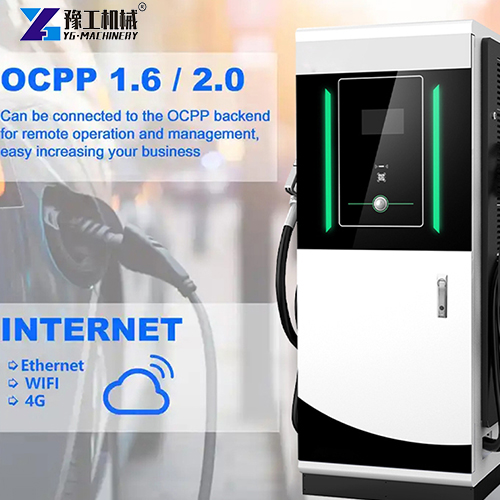

4. The charging pile is also equipped with a communication module to support real-time data interaction with the background management system, which is convenient for operators to remotely monitor and manage.​

Free Quote Now

Commercial EV Charging Stations for Sale: Significant Features​

1. Fast charging speed is its killer feature. The mainstream DC fast charging pile on the market has a power of up to 120kW, which can replenish the power required for 300 kilometers of driving for electric vehicles in 30 minutes.

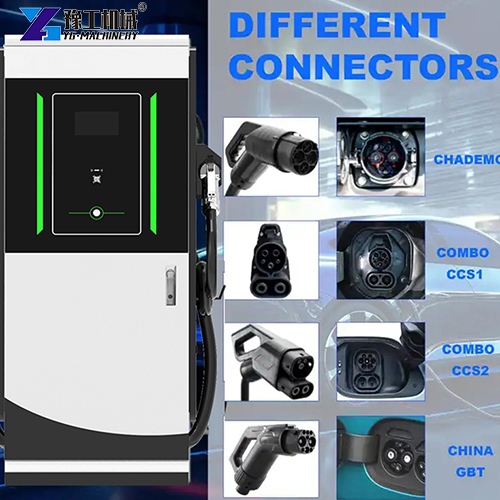

2. Strong compatibility is also a problem. Whether it is a popular brand or a niche new energy model, the car charging pile can be accurately adapted.
3. The degree of intelligence is even at the forefront. Through the mobile phone APP, users can remotely view the location and usage status of nearby charging piles.
4. It can also monitor the charging progress in real time, and even set the charging period to reduce costs by taking advantage of the low electricity price at night. ​

Reasons for the Popularity of Ev Charging Piles Are

1. The global electric vehicle market continues to explode. In 2023, global electric vehicle sales will exceed 10 million, a year-on-year increase of more than 50%, which directly stimulates the demand for car charging piles.
2. Governments of various countries have also introduced favorable policies. For example, my country provides up to 30% financial subsidies for the construction of charging piles. The United States has launched a charging pile infrastructure construction plan and invested tens of billions of dollars to support the layout of the charging pile network.
3. Technological innovation has continuously reduced the cost of charging piles, but greatly improved their performance. For example, the application of new liquid cooling charging technology makes the heat dissipation of charging piles more efficient and extends the service life. These factors have jointly promoted them to become a “hot commodity” in the market, and the scale of the industry continues to expand.

Free Quote Now

​YG Ev Charging Pile Practical Cases in Latin America

1. Case in Colombia: Public Charging Station in Downtown Bogotá

At a shopping mall parking lot in Bogotá, the capital of Colombia, the client bought two YG-120KW dual-gun DC electric vehicle charging piles. Made of galvanized sheet metal with auto-factory standard spray-painted casing, the equipment uses imported foam sealing strips and robotic automatic gluing technology. It fits the local rainy climate that occurs frequently. After one and a half years of operation, no rust or paint peeling appears on the shell, and no water seepage is found inside the device. Its mainboard reserves expansion ports for American standard protocols to charge local mainstream EVs with US-standard plugs, including some imported Tesla and Volvo models.

2. Case in Mexico: Dedicated Charging Station for Logistics Fleets in Monterrey

In Monterrey, an industrial city in northern Mexico, an electric truck logistics company purchased eight YG-60KW single-gun electric vehicle charging piles to centrally charge medium-sized trucks overnight. Designed to work normally within -25℃~+50℃ wide temperature range, the units cope with drastic day-night temperature swings and hot summers locally. Forced air cooling, plus low noise below 60dB, prevents disturbance to surrounding areas. The mainboard supports dynamic power allocation as well as balanced and rotating charging, enabling flexible power management when multiple fleet vehicles connect at once. Drivers can pay via card swiping or the app QR scan for easy operation.

EV Fast Charger’s Return on Investment​

1. Investing in ​EV fast chargers is an excellent opportunity to seize the dividends of the new energy industry. As the number of electric vehicles continues to rise, more and more car owners rely on car charging stations to solve their daily charging needs.
2. During the operation process, in addition to basic charging services, charging piles can also be transformed into “advertising screens” to expand profit channels by placing commercial advertisements.
3. Cooperating with new energy vehicle companies to provide exclusive charging services for specific models can also create additional income.​
4. What is more noteworthy is that governments of various countries continue to increase their support for the construction of charging piles, introduce various favorable policies, and lower the investment threshold.
5. Choosing to invest in EV chargers means grasping the wealth code of the new energy era and easily harvesting stable and sustainable returns. Don’t hesitate, act quickly, and start your charging pile investment journey!

YG—Professional Static EV Charger Manufacturer

YG has been deeply involved in the EV charging pile manufacturing field for many years. We deeply understand the differences in needs of different customers, whether it is a small home charging pile or a large commercial EV charging station for sale project, we can provide one-stop customized services. All products have passed ISO 9001 quality certification and CE certification, and use high-quality components to ensure that the average trouble-free operation time of the charging pile is very long. Choosing YG means choosing a reliable and efficient charging solution. Contact us quickly to start a new chapter of cooperation! ​
