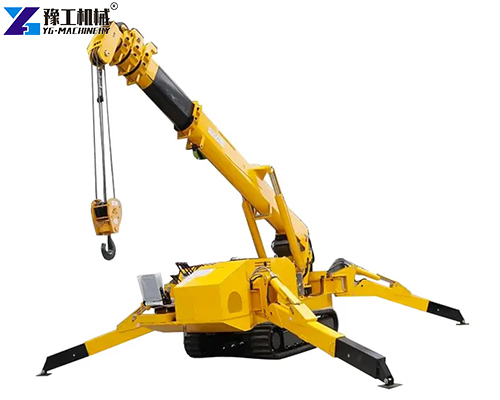

This Russian customer primarily engages in small-scale construction and equipment installation, often encountering the challenge of limited site space. The large cranes they previously used simply couldn’t fit into rural courtyards and forest trails, significantly delaying their work. By chance, they came across a YG mini crawler crane for sale. Their unique track design allowed them to navigate muddy and sloped terrain with stability, while their compact size allowed them to maneuver flexibly even in tight spaces. They quickly contacted YG, inquiring in detail about the equipment’s load capacity, fuel consumption, and maintenance. After reviewing customer feedback, they felt it was a perfect fit and quickly placed an order for a 3-ton spider crane. Click the button below to get the factory price on a YG spider crane!
Mini Crawler Crane for Sale Parameter
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 | |
What Kind of Work Does This Russian Customer Use the Crawler Spider Crane For?

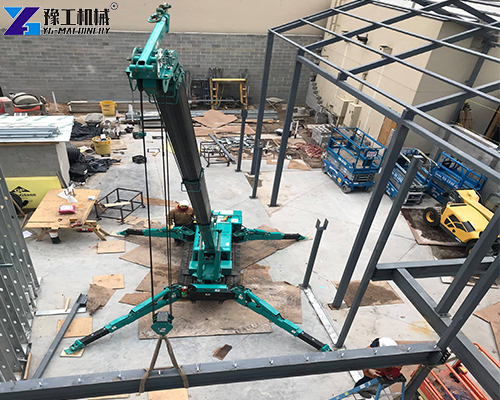

- The crawler spider crane they purchased has proven to be very useful. During rural house construction, it allows them to precisely lift prefabricated panels and steel beams in tight yards, eliminating the need for repositioning larger equipment. 2. During forestry maintenance, it can reach deep into the woods and safely transport felled timber to the roadside, eliminating the need for manual handling.
- During municipal maintenance, it can easily lift streetlights and billboards on narrow streets without disrupting the flow of surrounding vehicles and pedestrians. Regardless of the task, the equipment is stable and easy to operate, greatly improving work efficiency.
Economic Benefit Analysis of Using YG’s Mini Tracked Crawler Crane in Russia
- Before purchasing the spider crane, the client had to rent a large crane, which not only cost a lot of money but also required waiting for the equipment to be available, often delaying the project. By switching to their own mini tracked crawler crane, they no longer have to pay for rentals and can use it whenever they want, with control over their schedules.
- The equipment has very low fuel consumption, making daily expenses much lower than renting equipment.
- Maintenance is also simple: simply cleaning the tracks and checking the engine are sufficient, eliminating the need for high maintenance costs. Long-term use is much more cost-effective than renting equipment, allowing you to take on more work and making money easier.
Why Are Spider Cranes so Popular with Russian Customers?
- Russian winters are extremely cold, and the ground easily freezes. Many equipment struggles in such conditions. However, spider cranes have wide crawler belts and strong grip, preventing slipping on icy surfaces, making winter work safer.
- Their compact size makes them easy to fit into small rural yards and forest paths, unlike larger equipment that is restricted by space.
- They are also freeze-resistant, allowing the engine to start normally even in temperatures of dozens of degrees below zero, eliminating the need for preheating.
- YG also provides Russian-language manuals and quick after-sales response, ensuring prompt resolution of any issues, making them a worry-free experience for customers.
3t/5t/8t Mini Crawler Crane for Sale from YG Machinery
YG has been manufacturing spider cranes for 10 years and is highly experienced in equipment design and production. We sell numerous mini crawler cranes for sale worldwide each year, and many of them are used by Russian customers. The factory has a dedicated R&D team that optimizes equipment performance based on the climate and terrain of each country. For example, they’ve enhanced the equipment’s cold resistance to Russia’s harsh climate. YG also offers a one-year warranty. If you have any equipment issues, simply contact customer service for prompt resolution. In addition, we also produce hydraulic lifting platforms, forklifts, articulated boom lifts, telescopic arm forklifts and other related equipment! If you need a reliable spider crane, contact YG now!
