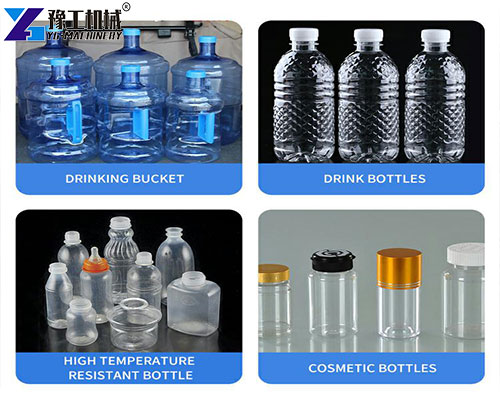

The bottle blower uses advanced technology to produce high-quality bottles for industries such as beverages, cosmetics, and pharmaceuticals. By heating and shaping preforms, the bottle blow molding machine ensures production accuracy and efficiency, making it an indispensable part of modern production lines. Feel free to contact us anytime to get the latest plastic bottle making machine price!【WhatsApp/WeChat/Phone】+86 13837122632
Bottle Blower Parameters
Semi-Automatic Hot-Selling Product Parameters
| Item | unit | TECH,DATA |
| DR | ||
| Product Capacity | L | 25 |
| Production Capacity | pcs/h | 100 |
| Mold Opening Stroke | mm | 330 |
| Max Mold Thickness | mm | 400 |
| Max Bottle Height | mm | 500 |
| Max Bottle Diameter | mm | 300 |
| Max Bottle Neck Diameter | mm | 125 |
| Dimensions | m | 2.17×0.78×1.94 |
| Power Supply | 380v/50-60HZ | |
| Heater Rated Power | kw | 21 |
| Number of Preform Heads | 19 | |
| Dimensions | m | 2.48×0.7×1.57 |
| Bottle Blower Weight | kgs | 1000 |
| Heater Weight | kgs | 400 |
Fully Automatic Hot-Selling Product Parameters
| Category | Item | Unit | PET-600 |
| Raw Material | / | PET | |
| Product | Cavity | 6 | |
| Product | Max Volume | L | 0.8-1.5 |
| Product | Theoretical Output | Pcs/h | 5000-8000 |
| Product | Max Height | mm | 260 |
| Product | Max Diameter | mm | 105 |
| Product | Max Neck Outer Diameter | mm | 38 |
| Auxiliary Equipment | Blowing Pressure | Mpa | 2.5-3.5 |
| Auxiliary Equipment | High Pressure Air Consumption | Ltr/min | 2500-2800 |
| Auxiliary Equipment | Working Pressure | Mpa | 0.7-0.9 |
| Auxiliary Equipment | Low Pressure Air Consumption | L/m³ | 1600 |
| Auxiliary Equipment | Chiller Pressure | Mpa | 0.3-0.5 |
| Auxiliary Equipment | Chiller Temperature | ℃ | 10 |
| Auxiliary Equipment | Chiller Flow Rate | L/m³ | 50 |
| Electrical Specs | Number of Lamps | pcs | 48 |
| Electrical Specs | Total Power | KW | 96 |
| Electrical Specs | Heating Rated Power | KW | 96 |
| Electrical Specs | Actual Power Usage | KW | 18 |
| Electrical Specs | Voltage/Frequency (Three-Phase) | V/HZ | 220-380/50-60 |
| Equipment Specs | Main Machine Dimensions | M | 5.02.12.1 |
| Equipment Specs | Main Machine Weight | KG | 5000 |
| Equipment Specs | Conveyor Dimensions | M | 2.01.02.0/2.00.92.0 |
| Equipment Specs | Conveyor Weight | KGS | 220 |
| Safety | Automatic Fault Alarm |
Working Principle of Bottle Blower
- Preheating Stage: The preform is heated and softened through infrared lamps. The bottle neck is kept cool to maintain its shape and ensure sealing quality later.
- Blow Molding Stage: The preheated preform is placed in the mold, where high-pressure air inflates and stretches it into the desired shape. This stage determines the final appearance and stability of the bottle.
Fully Automatic and Semi-Automatic Bottle Blow Molding Machine

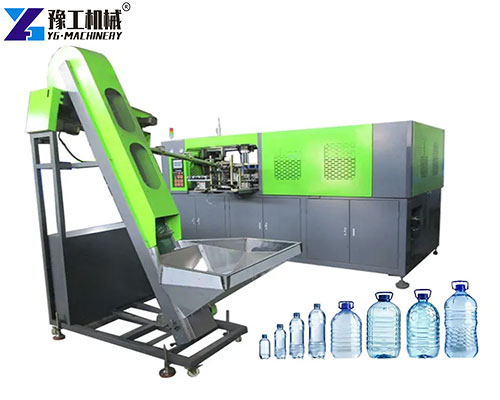

- Fully Automatic Model: Integrated with robotic arms to achieve seamless coordination between preheating and blowing. As shown in the parameters, the PET-600 type PET bottle blowing machine can produce 5000–8000 bottles per hour, ideal for mass production.
- Semi-Automatic Model: Requires manual placement of preforms but offers greater flexibility. It’s suitable for small batches or diverse product lines and is simple to operate.
Factors When Choosing a Bottle Blower
- Production Capacity: Select the number of cavities according to production scale. Fully automatic multi-cavity machines suit large-scale production, while semi-automatic ones are ideal for trial or small-volume production.
- Product Specifications: Consider bottle capacity, height, and diameter to ensure equipment compatibility with your design.
- Investment Budget: When evaluating the plastic bottle making machine price, take into account efficiency, energy consumption, and labor cost to choose the best return-on-investment plan.
Advantages of YG Machinery Bottle Blower
- Quality Assurance: All materials meet standard specifications to ensure long-term, stable operation with zero compromise on quality.
- Customization Options: Various specifications available with professional customization for special production needs.
- Ease of Operation: User-friendly design makes operation simple without requiring specialized training.
A Smart Investment in Bottle Blow Molding Machine
Although fully automatic models have higher initial costs, they deliver lower unit production costs. Semi-automatic models, on the other hand, require less investment and are perfect for businesses with limited budgets. It’s recommended to select the most suitable bottle blow molding machine model based on actual production needs to achieve the best investment return.
In conclusion, the bottle blower, as a core device in packaging production, directly impacts operational efficiency and profitability. The bottle blow molding machine provided by YG Machinery offers excellent reliability and adaptability, making it an ideal solution for enterprises of all sizes. Contact us now for an exclusive discount—we provide 24-hour online service!【WhatsApp/WeChat/Phone】+86 13837122632
