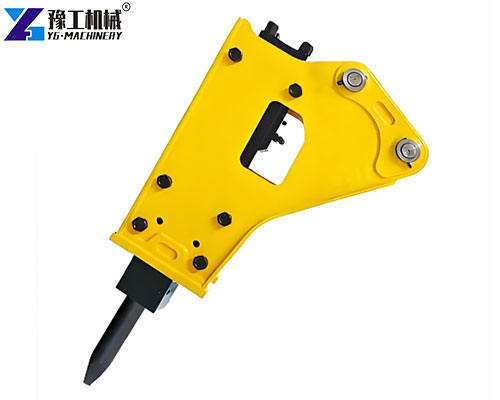

Concrete breaker for mini excavator

In small-scale engineering operations, a concrete breaker for mini excavator is the core tool for demolishing hard structures. It uses hydraulic power to drive the drill rod to impact at high frequency, which can easily break concrete, rock, and even asphalt pavement. Whether it is urban reconstruction, road maintenance, or garden landscape construction, this equipment can greatly improve work efficiency and reduce labor costs. For high-quality and low-cost concrete breakers, contact YG Machinery for factory prices!

Free Quote Now

Concrete Breaker for Mini Excavator Parameters

Model	Chisel Diameter	Suitable Carrier Weight	Main body Weight	Operating Pressure	Hydraulic Oil Flow	Blow Frequency	Hose Diameter
	mm	Ton	kg	Kg/cm 2	I/min	bpm	inch
YG350	35	0.5-1	40	90-120	15-25	800-1300	1/2
YG400	40	1-3	53	90-120	15-25	800-1300	1/2
YG450	45	1.2-3.0	67	90-120	20-30	700-1200	1/2
YG530	53	2.5-4.5	85	90-120	25-50	600-1100	1/2
YG600	60	2-5	140	90-120	25-50	600-1100	1/2
YG680	68	4-7	152	110-140	40-70	500-900	1/2
YG750	75	6-9	210	120-150	50-90	400-800	1/2
YG850	85	7-14	278	130-160	60-100	400-800	3/4
YG100	100	10-15	475	150-170	80-110	350-700	3/4
YG1250	125	15-18	616	150-170	80-110	350-700	3/4
YG1350	135	16-26	846	160-180	130-150	400-800	1
YG1400	140	18-26	916	160-180	120-180	350-500	1
YG1400A	140	18-26	952	160-180	120-180	350-500	1
YG1500	150	27-35	1088	160-180	150-190	350-700	1
YG1550	155	28-36	1309	180-200	200-260	250-400	1-1/4
YG1650	165	30-40	1438	180-200	200-260	250-400	1-1/4
YG1650P	165	30-40	1586	180-200	200-260	250-380	1-1/4
YG1750	175	35-40	1929	180-200	210-290	200-350	1-1/4
YG1850	185	35-45	2411	190-220	220-270	200-250	1-1/4
YG1990	190	40-55	2626	190-220	220-290	180-200	1-1/4
YG2100	210	60-80	3396	200-240	290-350	150-200	1-1/4

Free Quote Now

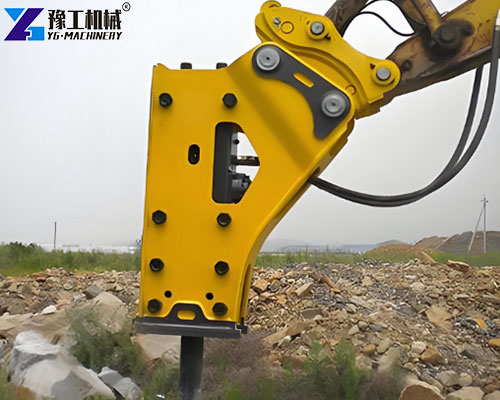

Hydraulic Concrete Breaker Application Scenarios​

Mini excavator concrete breaker hammer has a wide range of application scenarios.

1. In urban road reconstruction, it can quickly break the old road concrete layer; during building demolition operations, it can accurately remove walls, beams, and columns without damaging surrounding structures.
2. In mining, breaking hard rocks is no problem. Just like the hydraulic shears of excavator attachments to handle metal scraps, rock saws to cut stones, dredging pumps to clean river silt, and quick adapters to switch attachments, concrete breakers make mini excavators more powerful and easier to handle complex working conditions.​

Working Principle of Mini Excavator Breaker Hammer​

The concrete breaker for mini excavator is a hydraulic drive device, that is, a hydraulic concrete breaker. The hydraulic system of the excavator provides power, and high-pressure oil enters the inside of the breaker, pushing the piston to reciprocate at high speed. The piston hits the drill rod, and the drill rod transmits the impact force to hard objects such as concrete to achieve crushing. The operation is simple. You only need to operate the handle in the excavator cab to adjust the crushing force and frequency, which is as convenient as using a mini excavator breaker hammer.

Free Quote Now

Main Advantages of the YG Machinery Mini Excavator Breaker

As a professional manufacturer of small excavator concrete breakers, YG has significant product advantages.

1. Made of high-strength alloy steel, it has strong wear resistance and a service life that is 30% longer than ordinary products.
2. Patented hydraulic system design, high energy conversion efficiency, large crushing force, and more efficient operation with a mini excavator concrete breaker.
3. Suitable for a variety of small excavators, and with quick adapters, the switching of accessories is more flexible.

At present, YG has cooperated with customers in more than 30 countries around the world, and its products are exported to Europe, America, and Southeast Asia, and its quality is highly recognized. Choosing YG Machinery will get you high-quality and affordable small excavator concrete breakers. ​

Mini Excavator Concrete Breaker Maintenance

Only with good maintenance can small excavator concrete breakers operate efficiently and for a long time.

1. After each use, clean the soil and gravel on the surface of the breaker to prevent impurities from entering the interior.
2. Check the hydraulic oil pipeline regularly to avoid oil leakage. Replace the hydraulic oil and filter element every 200 working hours. Just like caring for the hydraulic shears, rock saws, and dredging pumps of excavator attachments, properly maintain the concrete breaker to extend its service life and reduce maintenance costs. ​

Free Quote Now

Concrete Breaker for Mini Excavator for Sale- YG Machinery

In the field of engineering construction, small excavator concrete breakers can greatly improve the progress of the project. As a professional manufacturer, YG is well aware of market demand and strives to create high-quality products.
Our concrete breakers have high performance. Whether it is a small municipal project or a large-scale mining project, it can be performed stably. At the same time, the reasonable price system allows you to obtain high-performance equipment at an affordable cost. At present, YG has established cooperation with customers in more than 20 countries, including the United States, Germany, and Japan, and its products have received rave reviews in overseas markets. Contact us now to get exclusive solutions and preferential quotes!
