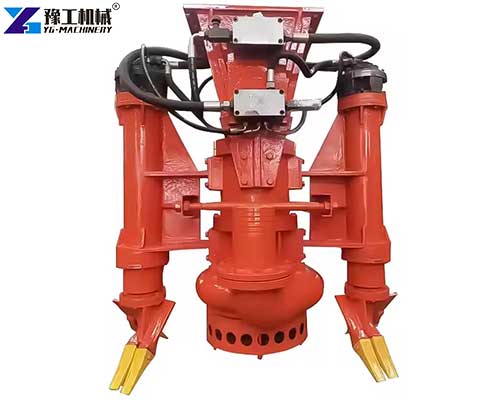

The excavator dredge pump, also known as an excavator slurry pump, is professional equipment installed on the excavator. It is mainly used to handle liquid media containing a large amount of solid particles, such as mud, sludge, slag, etc. This pump can use the mobility and powerful power of the excavator to perform efficient operations in various harsh environments. For example, it can be seen in scenes such as river dredging, port construction, and mine tailings treatment. Unlike ordinary slurry pumps, excavator-mounted dredge pumps can move flexibly with the excavator, adapt to different terrains and working positions, and greatly improve work efficiency.
Excavator Dredge Pump Parameter
| Serial No. | Model | Flow m3/h | Lift(m) | Matching Agitator | Stirrer Torque | Excavator Tonnage |
| 1 | YG200-15 | 200 | 15 | 5.5KW | 1556 | 10T-20T |
| 2 | YG150-30 | 150 | 30 | |||
| 3 | YG300-20 | 300 | 20 | |||
| 4 | YG400-10 | 400 | 10 | 7.5KW | 1946 | 20T-30T |
| 5 | YG500-15 | 500 | 15 | |||
| 6 | YG250-35 | 250 | 35 | |||
| 7 | YG300-30 | 300 | 30 | 15KW | 2433 | 30T-40T |
| 8 | YG400-30 | 400 | 30 | |||
| 9 | YG400-40 | 400 | 40 |

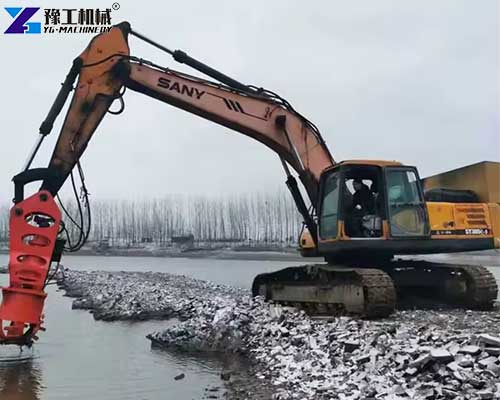

Excavator Mounted Dredge Pumps Application
- In the dredging project of rivers and lakes, it can quickly remove the silt on the riverbed and restore the navigation capacity and water conservancy function of the river.
- In port construction, it is used to transport a large amount of silt for port expansion and maintenance.
- The mining industry is also inseparable from it. The tailings slurry in the tailings pond can be efficiently transported by an it for subsequent processing.
- In addition, in some municipal projects in cities, such as sludge cleaning in sewage treatment plants, the excavator-mounted dredge pumps can also show their prowess.

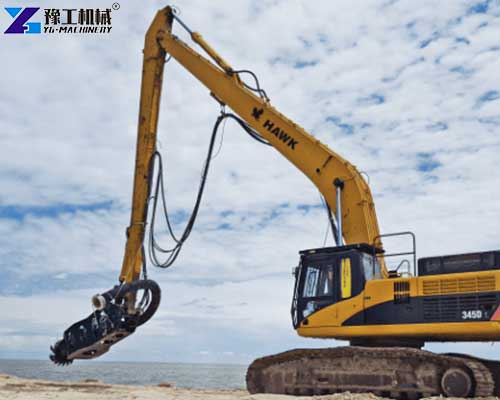

Advantages of the Excavator Dredge Pump
- First, it has a strong conveying capacity and can handle high-concentration, large-particle slurry, with an hourly displacement of hundreds of cubic meters.
- Secondly, with the help of the power of the excavator, it has an excellent ability to adapt to harsh environments. Whether in deep water areas or on construction sites with complex terrain, it can work stably.
- Furthermore, the maintenance of the equipment is relatively simple, its structural design is reasonable, and key components are easy to replace, which reduces the cost of use.
- Moreover, the excavator dredge pump is quick to install and disassemble, and can be quickly assembled and debugged on the excavator according to different engineering requirements.

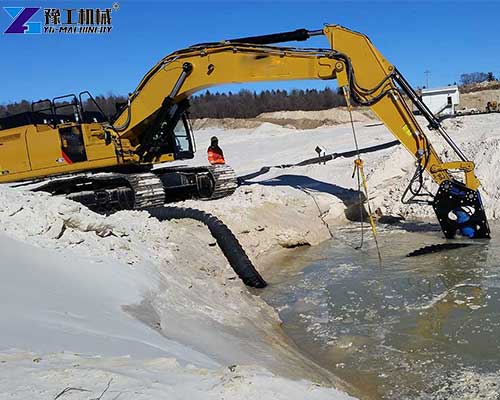

Excavator Dredge Pump Working Principle
The working principle of the excavator dredge pump is not complicated. When the excavator is started, its hydraulic system provides power for the pump. The impeller in the pump rotates at high speed, forming a negative pressure at the pump inlet, sucking the mud into the pump body. The rotation of the impeller also applies energy to the mud, so that the mud obtains sufficient kinetic energy and is discharged at high speed through the pump outlet. In this process, some excavator dredge pumps are also equipped with a stirring device to stir up the settled silt to ensure the uniformity of the mud and facilitate better transportation.
Excavator-Mounted Dredge Pumps Function
The excavator dredge pump has various functions. In addition to the basic mud transportation function, it can also efficiently handle mud of different properties. For example, when handling mud containing corrosive substances, the pump body uses special corrosion-resistant materials to ensure the service life of the equipment.
For slag containing larger particles, the impeller and flow-through parts of the pump are specially designed, which are not easy to wear and can still maintain a stable transportation capacity. At the same time, by adjusting the operating parameters of the excavator, the flow and head of the pump can also be flexibly controlled to meet the specific needs of different projects.

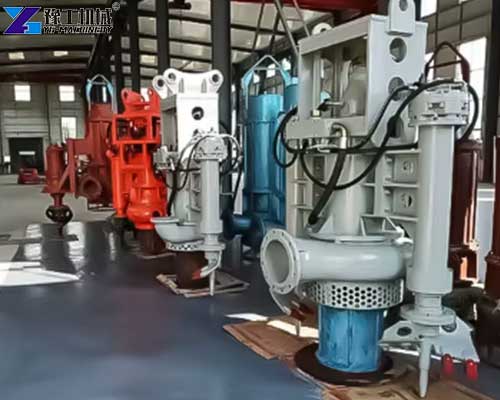

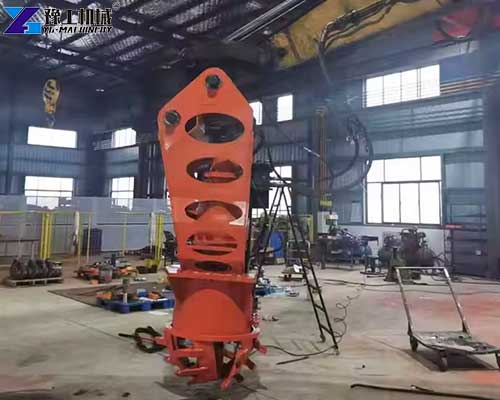

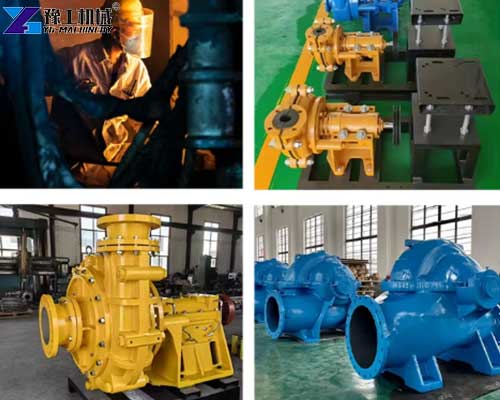

Excavator Dredge Pump Machine-YG Manufacturer
As a professional excavator sand pump manufacturer, YG has produced products with excellent performance based on years of technical accumulation and innovation capabilities. YG’s excavator dredge pump is highly recognized in the market and provides a reliable guarantee for the smooth progress of many large-scale projects. Whether it is product quality or after-sales service, YG is committed to providing customers with the best experience, so that the excavator sand pump can perform to the maximum in various projects.
