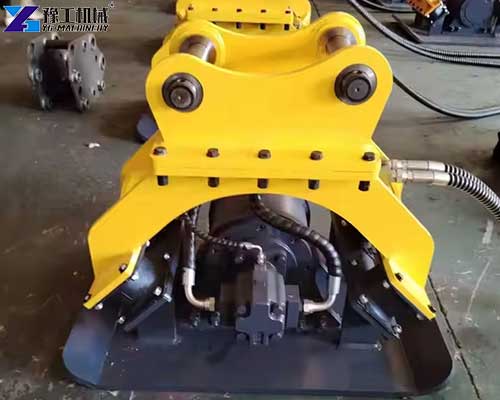

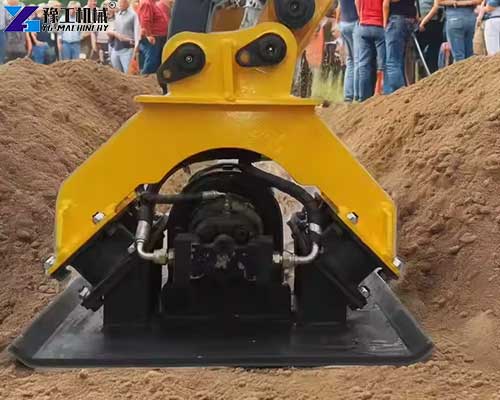

The excavator vibratory plate compactor, as the name suggests, is a tamping equipment used in conjunction with excavators. It is powered by the excavator’s hydraulic system, which transmits a strong vibration force to the rammer plate to efficiently compact the ground. It is mainly used for plane ramming, inclined ramming, step ramming, and trench pit ramming etc. It is suitable for ramming materials with small bond and friction between particles, such as river sand, gravel, and asphalt. Looking for mini excavator attachments, click for machine factory price!

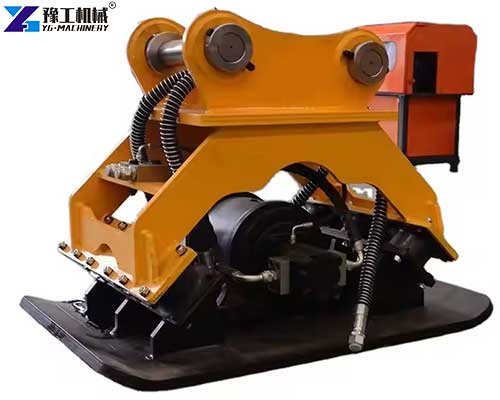

Excavator Vibratory Plate Compactor Parameter
| Model | YG-32 | YG-50 | YG-80 | YG-107 |
| Vibration force(KN) | 40 | 65 | 110 | 150 |
| Excitation frequency(RPM) | ≥2000 | ≥2000 | ≥2200 | ≥2200 |
| Working pressure(MPA) | 15 | 15 | 15 | 15 |
| Maximum flow(L/min) | 60 | 100 | 160 | 160 |
| Suitable excavators(T) | 4-9 | 10-18 | 20-27 | 30-40 |
| Length/width/height(mm) | 900*550*750 | 1160*700*930 | 1350*900*1000 | 1350*900*1050 |
| Machine weight(KG) | 380 | 550 | 920 | 1050 |
| Hit area(mm) | 900*550 | 1160*700 | 1350*900 | 1350*900 |

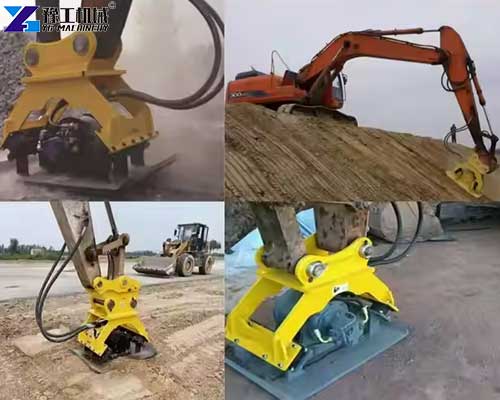

Mini Excavator Attachment Application
- Road construction: In the construction of highway and railroad roadbed, an excavator flatbed rammer can be used for roadbed compacting and reinforcing, cement pavement, water-stabilized grass-roots level of micro-cracking, and crushing regeneration. For example, in some narrow road or corner position, a large road roller can not perform; at this time excavator plate rammer can show its hands.
- Construction: In the field of industrial and civil construction, it can be used for the foundation treatment of sub-structures, eliminating the cost of crushed stone piles and shortening the construction period. At the same time, it can also directly treat construction waste on site, saving the cost of removing industrial waste.
- Water conservancy project: In the construction of water conservancy facilities such as dykes and slopes, excavator plate tamping can effectively tamp the foundation to ensure the stability and seepage resistance of the project. For example, the dam foundation construction of small reservoirs.

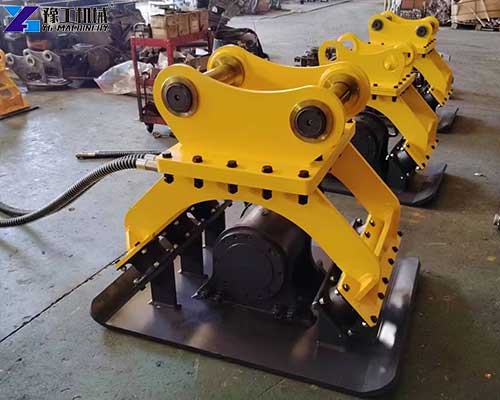

YG Excavator Compactor Attachment Features
- Strong tamping capacity: YG excavator vibratory plate compactor has a large amplitude, with a high frequency of 2000 times per minute, which ensures a strong and long-lasting tamping effect.
- High reliability: The key parts are made of high-strength plate and high-wear-resistant plate, using original imported hydraulic vibration motor and imported cylindrical roller bearings. It is low-noise and durable to ensure the quality and service life of the product.
- Good versatility: According to the site conditions, with various brands of excavators, truly realize the versatility and economy of the product, to meet the requirements of multi-terrain construction work.
- Flexible operation: The operation is far better than the hand-push tamper, and in many occasions where the hand-push tamper can not work, such as deep ditches or steep slopes, it can complete the operation.

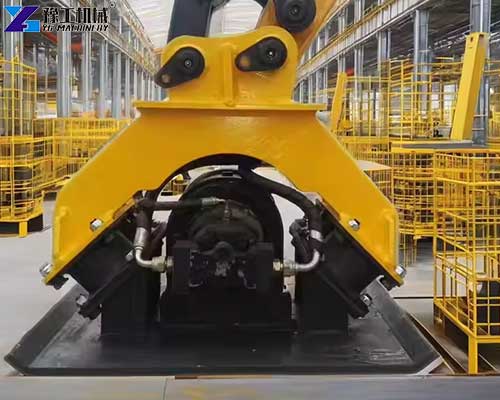

Excavator Vibratory Plate Compactor Functions
- Multi-terrain Adaptation: It can complete the tamping work of various terrains such as plane, slope, step, trench, and pit, as well as the tamping treatment of other complex foundations.
- Efficient operation: Used with an excavator, it greatly improves the efficiency of tamping work and saves labor and time costs.
- Precise control: Through the operating lever of the excavator, the tamping position and strength of the plate tamper can be precisely controlled to ensure the uniformity of the tamping effect.

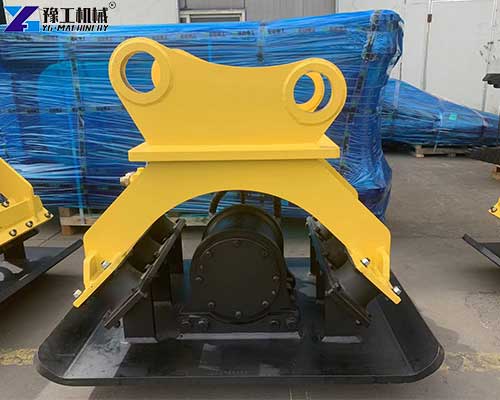

Excavator Attachment Plate Sold to Singapore
Recently, YG’s excavator-attached plate tampers were successfully sold to Singapore for a large infrastructure project. In this project, the construction team was faced with complex terrain and high standards of compaction, and YG’s plate rammer was highly praised by the customer for its powerful performance, easily accomplishing all kinds of arduous compaction tasks. Its efficient work and reliable quality not only helped the customer to complete the project on time, but also reduced the overall cost.
Excavator Vibratory Plate Compactor Manufacturer- YG
All in all, YG, as a quality manufacturer of excavator-attached plate rammer, has obvious advantages in terms of performance, reliability, and versatility of its products. If you are looking for an efficient and reliable excavator-attached plate rammer, YG is undoubtedly your best choice. Let’s work together to improve the efficiency and quality of construction with YG excavator-attached plate rammers! Besides, we also provide excavator attachments, hydraulic handling grabs, hydraulic shear, quick couplers, hydraulic clamp, and so on. If you have the corresponding project handling needs, click to contact us!
