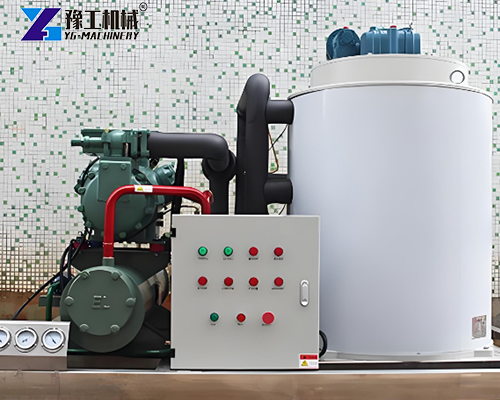

YG flake ice machine for sale is a device that produces thin and loose ice flakes. It condenses water into ice evenly through a refrigeration system and then forms standard-sized ice flakes through a cutting device. Unlike traditional ice cubes, flake ice has a large contact area and cools quickly. It is widely used in food preservation, medical storage, industrial cooling, and other fields.
Industrial flake ice machine parameters
| Model | 5T fresh water flake ice maker |
| Ice output | 5000kg/24h |
| Refrigeration capacity | 37.2KW |
| Evaporating temp | -20℃ |
| Condensing temp | 40℃ |
| Standard ambient temp | 25℃ |
| Standard water temp | 20℃ |
| Installation power | 22.05KW |
| Compressor input power | 20.2KW |
| Reducer power | 0.37 KW |
| Water pump power | 0.12KW |
| Air fan power | 1.36KW |
| Power input | 3P-380V-50Hz |
| Pressure | 0.1Mpa－0.5Mpa |
| Refrigerant | R404A |
| Ice temp | -5℃ |
| Ice thickness | 1.5mm-2.2mm |
| Water consumption（m3/h） | 0.2 |
| Water pipe size | 3/4″ |
| Net weight | 1000kg |
| Dimension（L*W*H）mm | 2000mm*1600mm*1650mm |
How do people use flake ice machine for sale?
- Catering industry: Seafood counters are covered with ice to keep them fresh, and cold drinks are made to improve the taste.
- Fishery processing: Fishing boats use flake ice to cover fish and extend their shelf life.
- Laboratory: Low-temperature experiments use ice to quickly adjust the environment.
- Supermarket cold chain: Fresh counters use ice to keep food fresh.
Working principle of the industrial flake ice machine
- Refrigeration cycle: The compressor drives the refrigerant to flow, and the evaporator absorbs heat to freeze the water.
- Ice scraping system: The blade cuts the ice layer at a uniform speed to ensure that the thickness of the ice flakes is uniform.
- Intelligent control: The thermostat monitors the thickness of the ice layer and automatically adjusts the ice production speed.
Benefits of using a flake ice machine
- Efficient cooling: Flake ice has a large contact area, and the cooling speed is 30% faster than traditional ice cubes.
- Energy saving and power saving: Intelligent control reduces idling and saves 20% energy per day.
- Hygiene and safety: The stainless steel structure is easy to clean and meets food-grade standards.
- Space saving: The modular design is flexible to install and adapt to a variety of venues.
Why choose YG’s flake ice machine for sale?
- Core technology: Using imported compressors, the ice production capacity is increased by 40%, and the service life exceeds 10 years.
- Customized service: The thickness of the ice flakes can be adjusted according to needs (1.5-3mm), and it supports 24-hour continuous operation.
- Quality assurance: YG focuses on the research and development of industrial flake ice machines and has passed ISO certification.
- Worry-free after-sales service: nationwide warranty, 24-hour response, and lifelong maintenance.
YG’s flake making machine
- Structural upgrade: The evaporator adopts a corrugated design to improve heat exchange efficiency.
- Intelligent operation: One-button setting of the LCD screen, which can be easily used by the elderly.
- Silent design: The noise is less than 55 decibels, suitable for office or home environments.
- Applicable scene comparison
Grab YG’s flake ice machine for sale now! If you need a cost-effective flake making machine or industrial ice-making equipment (such as an industrial crushed ice machine), YG provides a variety of models to choose from. Order now to enjoy free installation + 1-year extended warranty! Click to consult and get a customized solution!
