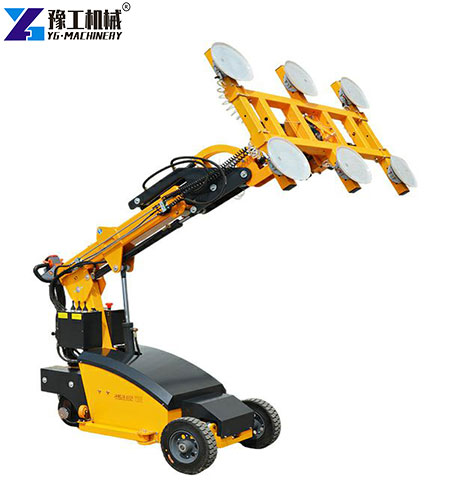

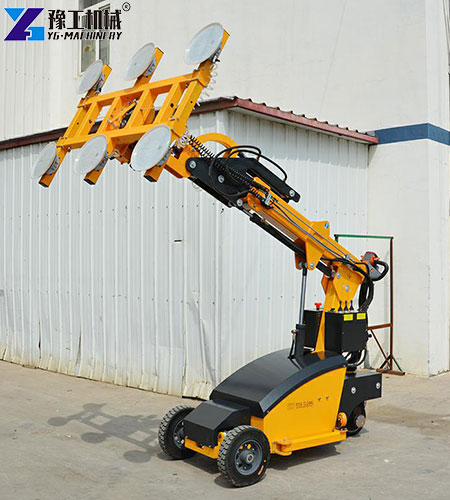

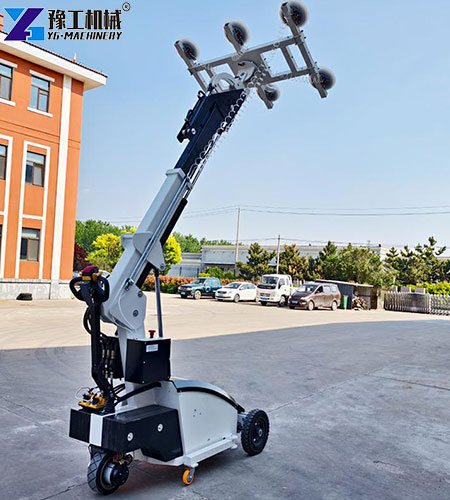

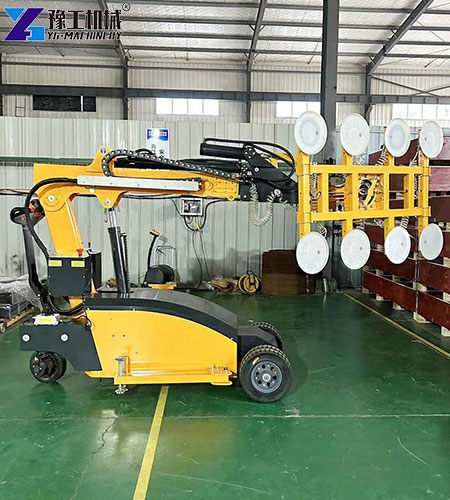

The intelligent glass lifting device, utilizing advanced vacuum adsorption technology, provides a perfect solution for handling and installing fragile materials such as glass and marble. It not only greatly improves work efficiency but also significantly reduces the safety risks of manual operations, making it an essential piece of equipment on modern construction sites. Welcome to contact us anytime for more product information and exclusive quotations!【WhatsApp/WeChat/Phone】+86 13837122632
Glass Lifting Device Parameters
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Technical Features of Glass Lifting Device

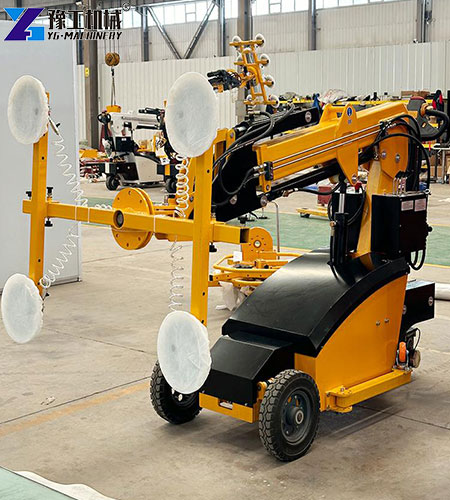

- Intelligent Vacuum System:
The device is equipped with multiple independently controlled vacuum suction cups, each with its own vacuum control valve to ensure strong and secure suction. This design allows the glass vacuum lifting equipment to handle glass panels of different sizes and weights efficiently. - Full Range of Motion:
The suction frame supports 360° rotation and 180° side flipping, while the support arm can move vertically and extend forward or backward. This flexibility provides excellent positioning precision, far beyond what traditional glass lifting machine designs can achieve. - Electric Intelligent Control:
Featuring electric lifting and electric walking systems powered by maintenance-free batteries, the device ensures long-term continuous operation. The intelligent charging system further enhances energy efficiency and operational reliability.
Safety Mechanisms of Glass Lifting Device
- Power Failure Pressure-Holding System:
In case of a power outage, the equipment maintains vacuum pressure to provide operators with sufficient response time. This function is particularly crucial for high-rise building projects. - Real-Time Alarm System:
The device includes a complete monitoring and alarm setup. If vacuum pressure drops or any anomaly occurs, the system instantly issues alerts, ensuring that all glass vacuum lifters for sale meet the highest safety standards. - Stable Chassis Design:
The optimized chassis structure and driving wheel configuration ensure excellent stability even under heavy load conditions, effectively preventing the risk of tipping over.
Wide Application Fields
- Curtain Wall Installation:

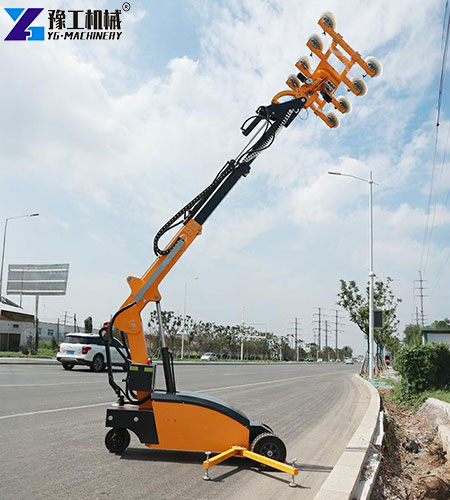

Especially suitable for glass curtain wall installations in high-rise buildings, with a lifting height of up to 4.5 meters to meet various construction needs. - Interior Decoration Projects:
Ideal for indoor glass partition installation and large mirror setups, where precise control of the glass lifting device ensures excellent efficiency and safety. - Stone Panel Handling:
In addition to glass, this glass lifting machine can safely handle heavy decorative materials such as marble and granite.
Operation and Maintenance Advantages
- Easy-to-Use Control System:
The humanized control interface allows operators to quickly master the operation skills, reducing training costs and time. - Modular Maintenance Design:
Each suction cup can be controlled individually, allowing separate repair or replacement when needed. This minimizes downtime and maximizes the working efficiency of the glass vacuum lifting equipment. - Long-Lasting Battery Support:
Equipped with large-capacity maintenance-free batteries, the system supports extended operation, and the smart charger keeps the battery in optimal condition at all times.
Selection Guide and Recommendations
- Load Capacity Matching:
Choose the appropriate model based on the material weight commonly handled to ensure the glass vacuum lifters for sale meet actual operational requirements. - Lifting Height Requirement:
Different models offer lifting heights ranging from 3.5 to 4.5 meters. Select the most suitable specification according to your project needs. - Mobility Considerations:
The chassis size and drive wheel configuration determine site mobility and ground adaptability, which should align with your working environment.
With the continuous rise of safety and efficiency standards in the construction industry, the professional glass lifting device has become a standard configuration for modern building operations. Its innovative technical design and advanced safety systems not only enhance construction quality but also ensure reliable protection for workers. Choosing the right glass handling equipment will bring remarkable value to your engineering projects. Contact YG Machinery today for detailed solutions and quotations!【WhatsApp/WeChat/Phone】+86 13837122632
