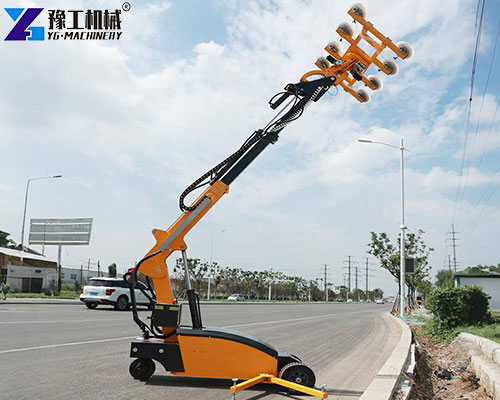

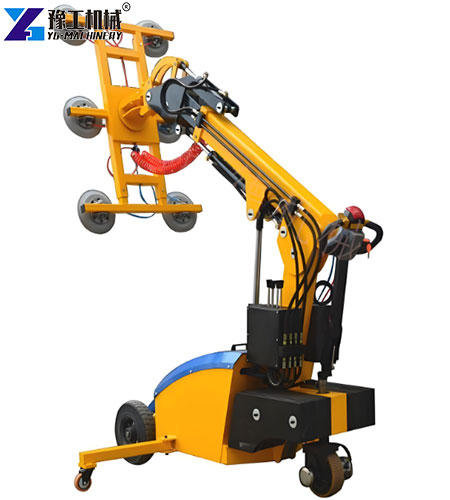

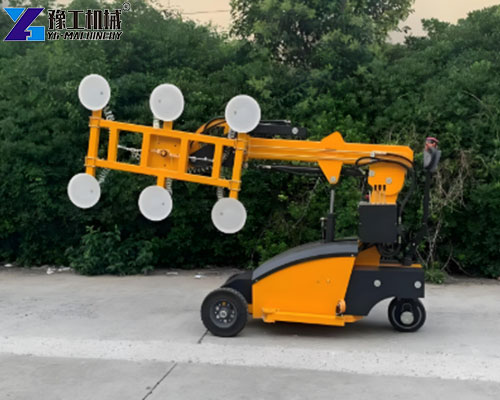

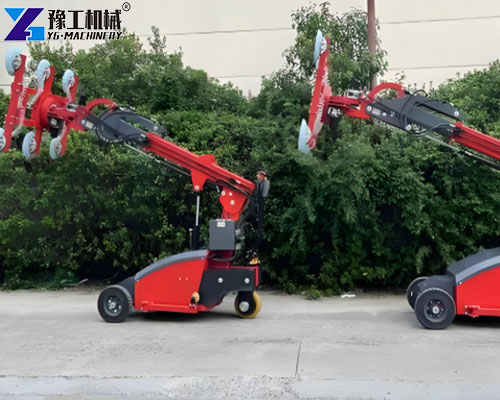

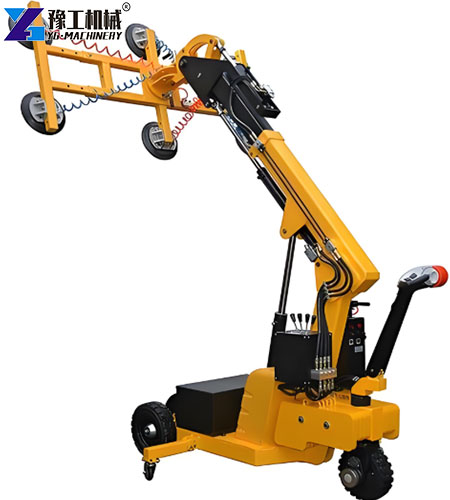

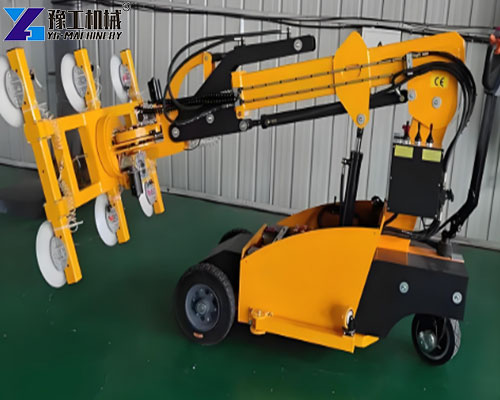

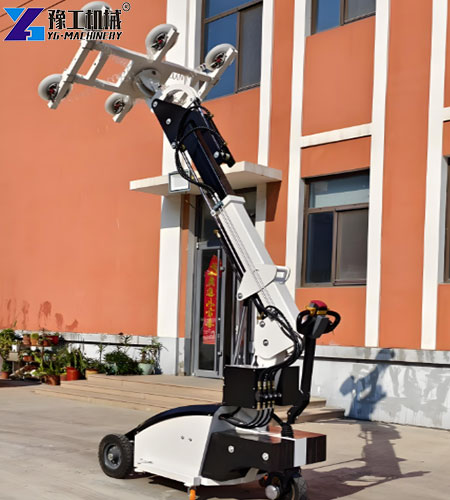

The glass lifting machine is specially designed for handling smooth surfaces such as glass, ceramics, and stone. It is easy to operate and supports customization, significantly improving production efficiency and safety. Whether for material transfer in solar photovoltaic glass workshops or complex installation scenarios, it provides a reliable solution. Welcome to contact our professional team anytime!【WhatsApp/WeChat/Phone】+86 13837122632
Glass Lifting Machine Parameters
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 | |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) | |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm | |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs | |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm | |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH | |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L | |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm | |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm | |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 | |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg | |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | |||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | ||||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | |||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | |||||
Glass Lifting Machine Features
- Multi-angle operation: The support arm moves up/down and extends forward/backward. The suction frame rotates 360° and flips 180°, ensuring precise work in tight spaces. This flexibility allows operators to handle glass from multiple angles efficiently and safely.
- Smart control: Equipped with electric lifting and travel systems for smooth, accurate glass handling. The intuitive control panel ensures stable movement, reducing manual labor intensity and improving overall work accuracy.
- Safety protection: Each suction cup has an independent vacuum valve. In case of power failure, pressure-holding and alarm systems protect both machine and glass, preventing sudden release and ensuring continuous safety operation.
- Strong endurance: The high-capacity maintenance-free battery with an intelligent charger ensures glass vacuum lifters for sale remain efficient even during long continuous operation, offering excellent stability for extended industrial use.
- High adaptability: Suitable for glass, ceramics, stone, and panels. Customizable suction cup quantity and extension arms meet varied job needs, providing flexible configurations for different material sizes and installation scenarios.
Case Sharing
- France Project: A glass curtain wall contractor from France purchased several glass lifting machine units for a high-rise building installation project in Paris. The precise control system significantly shortened the construction period and reduced the glass breakage rate.
- Mexico Project: The Mexican customer mainly engaged in solar photovoltaic module manufacturing greatly improved the efficiency of glass handling on their production line after introducing the glass lifting machine. With strong suction power and flexible steering, the equipment received high recognition from the client.
Why Choose YG Machinery
- Factory source and rich experience: As a direct manufacturer, YG Machinery offers competitive glass vacuum lifter price, along with years of industry expertise. Each glass lifting equipment for sale undergoes rigorous testing to ensure reliable performance in complex applications.
- Comprehensive full-process support: From pre-sale consultation to after-sale maintenance, YG Machinery provides one-stop service, including detailed product manuals and remote installation guidance. On-site installation by technicians can also be arranged to ensure quick operation.
- Reliable warranty and long-term value: All equipment enjoys a one-year warranty, with long-term supply of spare parts and maintenance services to minimize user operational risks.
Glass vacuum lifters for sale stand out for their high safety, intelligence, and adaptability, making them an ideal choice in the modern glass assembly industry. Whether you are engaged in curtain wall installation, photovoltaic glass production, or large-scale glass processing, YG Machinery can provide the most professional solutions.
Contact the YG team now to get more details about glass lifting equipment for sale, and make efficient, safe glass installation easier than ever.【WhatsApp/WeChat/Phone】+86 13837122632
