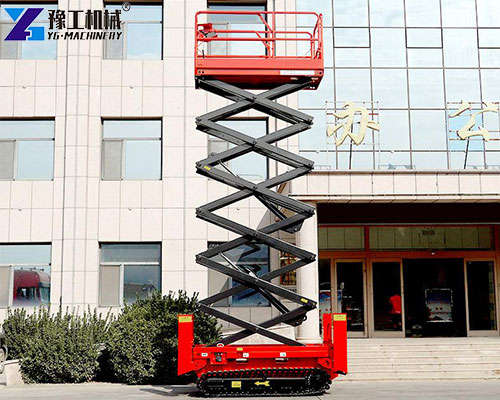

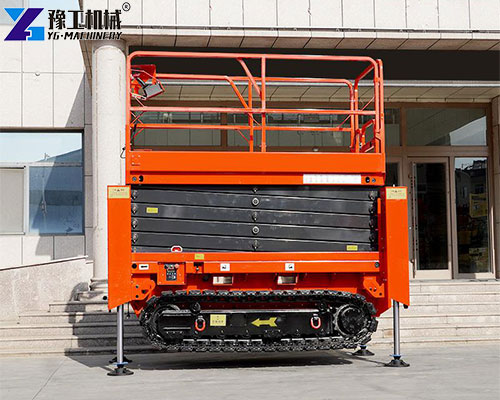

The hydraulic scissor lifting platform is a common mechanical equipment. It uses a hydraulic system to drive the scissor structure to extend and retract to achieve platform lifting. Whether it is high-altitude operation or cargo handling, it can easily cope with it. Compared with aerial work platform lifts, electric hydraulic table lifts, and other equipment, hydraulic scissor lifting platform has good stability, strong load-bearing capacity, and a wider range of applications.
Hydraulic scissor lifting platform parameters
| Model | Up(m) | Load(kg) | Platform size(m) | Outline dimensions/guardrail folding(m) | Lifting motor | Weight(kg) |
| YG0608SP | 5.8 | 230 | 1.67*0.74 | 1.86*0.76*1.84 | 24v/3.3kw | 1580 |
| YG0608 | 6 | 450 | 2.27*1.12 | 2.48*1.19*1.66 | 24v/3.3kw | 2170 |
| YG0810NP | 8 | 230 | 2.27*0.81 | 2.48*0.83*1.99 | 24v/3.3kw | 2260 |
| YG0810 | 8 | 450 | 2.27*1.12 | 2.48*1.19*1.78 | 24v/3.3kw | 2360 |
| YG1012 | 10 | 320 | 2.27*1.12 | 2.48*1.19*1.91 | 24v/3.3kw | 2640 |
| YG1214 | 11.8 | 320 | 2.27*1.12 | 2.48*1.19*2.03 | 24v/4.5kw | 2980 |
| YG1416 | 13.7 | 230 | 2.64*1.12 | 2.85*1.25*2.105 | 24v/4.5kw | 3600 |

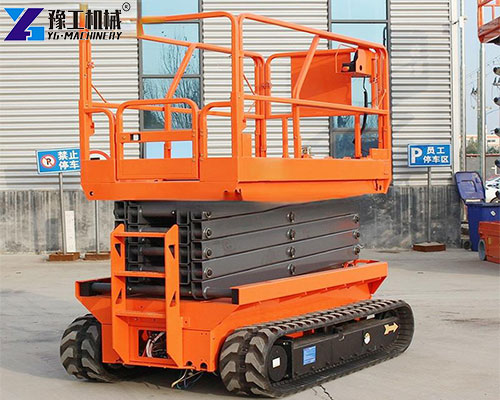

Aerial work platform lift price
The price of a hydraulic scissor lifting platform is affected by many factors.
- The price varies with the load-bearing capacity of the platform. The stronger the load-bearing capacity, the higher the manufacturing difficulty and cost, and the more expensive the price.
- Lifting height is also the key. The higher the lifting height, the stricter the requirements for the equipment structure and hydraulic system, and the higher the price.
- In addition, the material, configuration, and brand of the equipment will also affect the price. The price of a hydraulic scissor lifting platform with high-quality materials and high-end configuration is relatively high.
How to choose a suitable electric hydraulic table lift?
Choosing a hydraulic scissor lifting platform should be based on actual needs.
- First, determine the working height and load-bearing weight. According to the working scenario, estimate the maximum lifting height and load-bearing capacity required to avoid choosing inappropriate equipment.
- Also, pay attention to the stability and safety of the equipment. Check whether the equipment has safety protection devices, such as guardrails, anti-slip surfaces, etc.
- Understand the material and manufacturing process of the equipment to ensure that the equipment is sturdy and durable.
- Also consider the ease of operation and the maintenance cost of the equipment. Choosing a hydraulic scissor lifting platform that is simple to operate and easy to maintain can reduce the cost of use and improve work efficiency.

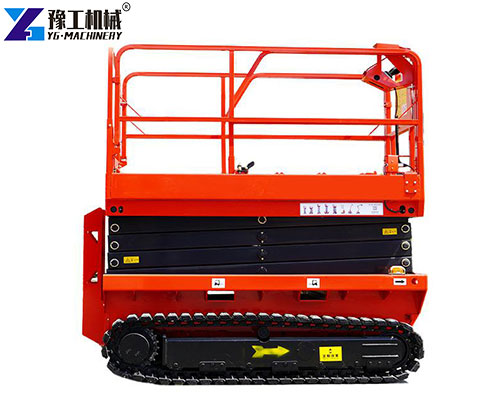

Repair and maintenance of the hydraulic work platform
Regular maintenance of the hydraulic scissor lifting platform can extend the life of the equipment.
- Before each use, check the hydraulic oil level and oil quality. Insufficient or deteriorated hydraulic oil will affect the performance of the equipment.
- Also, check the scissor structure, connectors, and safety devices to ensure that there is no looseness or wear.
- After use, clean the surface of the equipment to prevent dust and debris from entering the interior of the equipment.
- Periodically conduct a comprehensive inspection and maintenance of the equipment, replace worn parts, and calibrate safety devices.
- When equipment failure is found, repair it in time, and do not let small problems become big hidden dangers.
Hydraulic scissor lifting platform supplier- YG
Among many brands, YG’s hydraulic scissor lifting platform stands out. YG uses advanced technology and high-quality materials to manufacture equipment with stable performance, safety, and reliability. Whether it is a small operation or a large project, YG has suitable products. YG’s hydraulic work platform series is easy to operate and maintain, and is well-received by users. Choosing YG means choosing professionalism and peace of mind.
