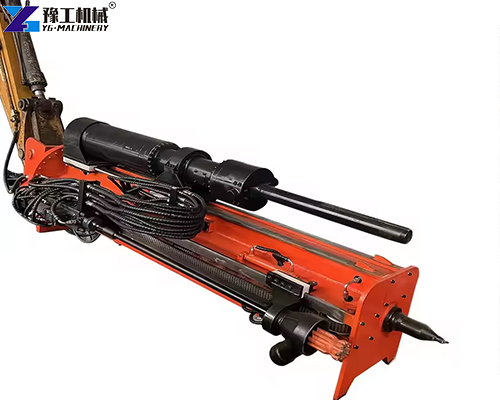

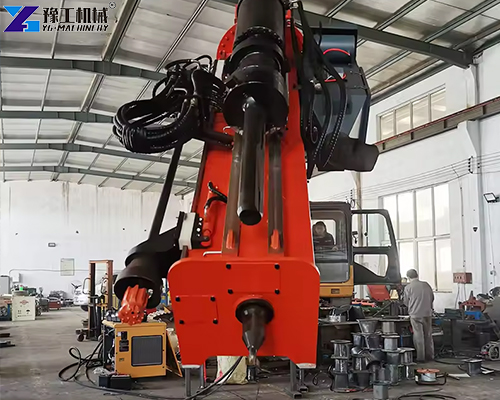

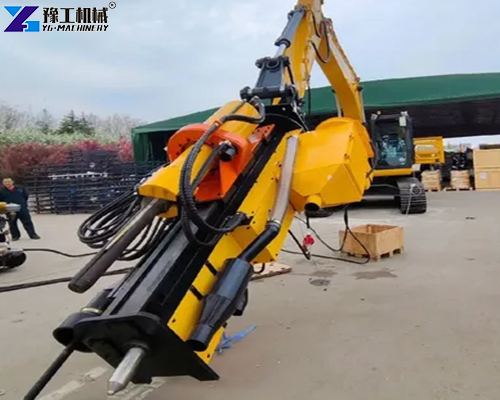

The excavator attachment integrated hydraulic rock drill and splitter combines hydraulic drilling and splitting functions. Powered by the excavator’s hydraulic system, it drills quickly and can handle rock of varying hardness. It delivers high splitting force, allowing for precise splitting without excessive damage. Its compact size allows for flexible movement when mounted on an excavator, making it suitable for operations in complex sites.
Integrated Hydraulic Rock Drill and Splitter Parameter
| Drilling and splitting all-in-one machine | |
| Matching excavator model | 25T |
| Length | 3900mm |
| Width | 1300mm |
| Height | 1000mm |
| Total weight (including air compressor) | 3.2T |
| Hole diameter | 43-115mm |
| Hole depth | 1700mm |
| Average drilling speed | 1m/min |
| Impact energy | 300J |
| Impact pressure | 17.5mpa |
| Impact flow | 80-100L/min |
| Impact energy | 18kw |
| The maximum total flow of the system | 300L |
| Rated pressure (MPA) of the excavator system | 40Mpa |
| Splitting machine | 380 |
| Rated tension | 5000T |
| Splitting time | 3minutes |
| Crack width | 44929mm |
| Displacement of air compressor | 8m³/5bar |
| Dust removal system | can be increased |
| Operation method | remote control or driving |

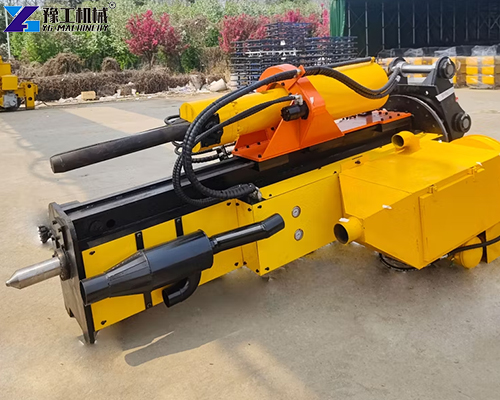

Specifications and Performance of Drilling and Splitting All-in-One Machine
- The YG excavator attachment integrated hydraulic rock drill and splitter has practical specifications. It can drill holes with a diameter of 50-150 mm and a splitting force of up to 3,000 tons, capable of handling hard rock such as granite. With an operating pressure of 16-22 MPa, it can drill 20-50 meters per hour, over 30% faster than traditional equipment.
- It offers low energy consumption, with hourly fuel consumption 15% less than similar products, and is highly durable, with a lifespan of over 8,000 hours.
- The ergonomically designed operating lever and high-definition display facilitate parameter adjustments. It features an intelligent temperature control system for easy maintenance, and key parts can be quickly disassembled.
Applications of Hydraulic Rock Drill and Splitter
This all-in-one drilling and splitting machine has a wide range of applications.

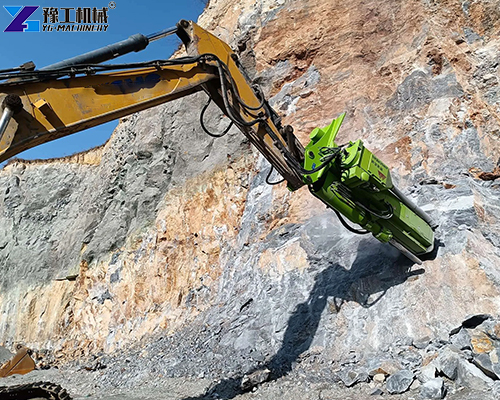

- Precisely splitting ore bodies during mining, it is safer than blasting and suitable for mines with nearby residential areas.
- During road construction, when encountering rock layers, drilling and splitting produces uniformly sized rocks that can be used directly as roadbed filler.
- During building demolition, it can disintegrate reinforced concrete structures from the inside without causing severe vibration. During tunnel excavation, it can control the contour and reduce overexcavation.
- It is suitable for treating dam foundation rock in water conservancy projects and for laying pipelines in municipal construction where rock obstacles are encountered.
How to Choose the Right Rock Drilling and Splitting Machine?
Several factors should be considered when choosing a model. 1. First, consider the rock hardness. For hard rock over 60 MPa, choose a model with a splitting force of 3,000 tons or more. For soft rock under 30 MPa, a 2,000-ton model will suffice.
- Next, consider the excavator’s tonnage. Light excavators with a capacity of 15-20 tons are recommended, medium excavators with a capacity of 20-30 tons, and heavy excavators with a capacity of 30 tons or more are recommended to minimize efficiency degradation.
- Also consider the drill diameter. Mining requires 100-150 mm, while municipal applications typically require 50-80 mm. For narrow sites, choose a drill with a body less than 2.5 meters. If unsure, consult a YG professional.

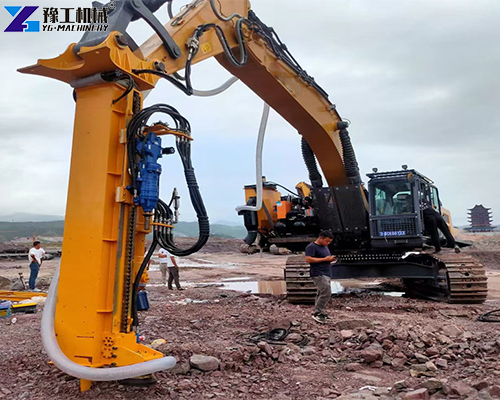

Integrated Hydraulic Rock Drill and Splitter for Sale-YG Machinery
YG’s integrated hydraulic rock drill and splitter offers high quality and excellent performance. We provide comprehensive after-sales service, including installation guidance and repair support. Whether you’re a mine owner, construction contractor, or someone working in the construction industry, it can help you improve efficiency and reduce costs. Contact us now for more information and to place your order. The hydraulic rock drill and splitter offer significant advantages. We prioritize customer needs and continuously optimize performance. We also produce other excavator attachments such as rock saws, hydraulic shears, crusher buckets, etc. Choosing YG means choosing efficiency and peace of mind. Act now and let it power your project. Feel free to send us an inquiry.
