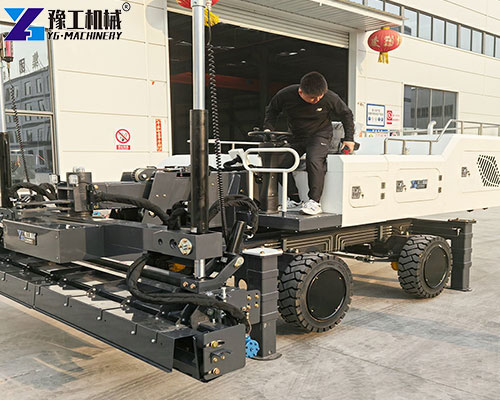

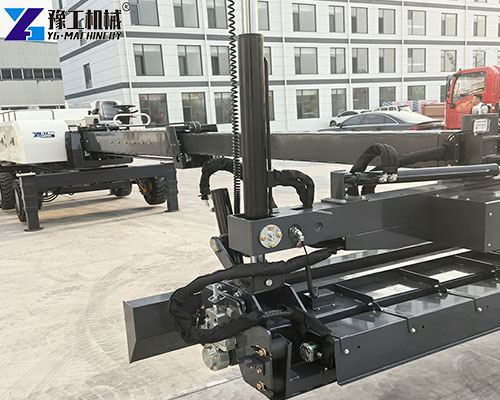

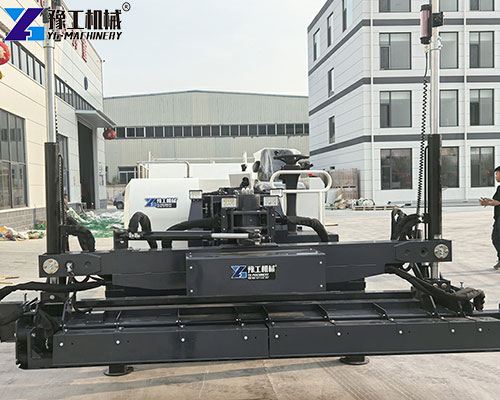

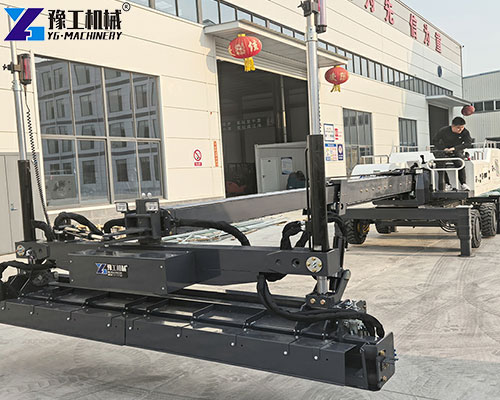

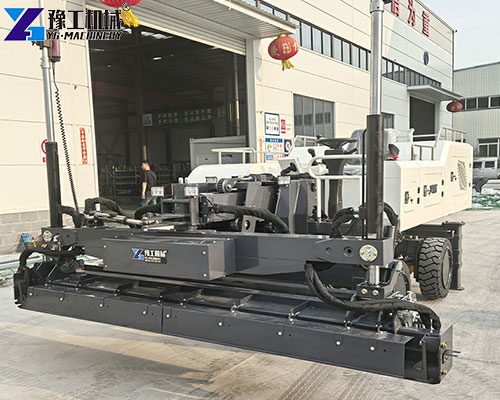

When traditional equipment struggles with large workshops or dense column networks, a highly efficient solution has matured — the laser concrete leveling machine with a telescopic arm comes into being. Through its extendable mechanical arm, this type of equipment realizes the revolutionary operation mode of “the machine stays still, while the leveling head reaches far”, fundamentally improving construction accuracy and efficiency under complex working conditions, and redefining the construction standards for high-quality floors.【WhatsApp/WeChat/Phone】+86 13837122632
Concrete Laser Leveling Machine Parameters
| YG-ZP30 | |
| Engine brand model | Yanmar 4TNV94L |
| Type | Diesel |
| Power | 35.5KW/48hp |
| Fuel tank volume | 100L |
| Hydraulic oil volume | 150L |
| Hydraulic system | Danfoss |
| Laser transmitter | American Tempo |
| Laser receiver | German Mopar |
| Laser system control effect | Flat, inclined or double slope (3D) |
| Laser system control method | Microcomputer laser scanning |
| Trapping method | Hydraulic Cage Paving |
| Auger power | Hydraulic motor |
| Advantages of Jiaobanlong | Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable |
| Reach length | 6000mm |
| Vibrating plate width | 3100mm |
| Leveling thickness | 100-450mm |
| Walking weight/working speed | 4-8km/h 24m/min |
| Walking drive form | Hydraulic four-wheel drive Outrigger |
| Steering method | One-touch four-leg self-leveling |
| Walking tires | Front wheel + four wheels + crab walk |
| Cleaning machine flow | 15L/min |
| Body size | 5350x3650x2040mm |
| Weight | 5500 kgs |
What Makes this Laser Concrete Leveling Machine Different?
- Large Modern Logistics Warehouses: The floor needs high flatness for automated storage and retrieval systems (AS/RS). The telescopic arm machine completes continuous pouring of super-large slabs, minimizing construction joints, with flatness tolerance within ±2mm/3m to meet AGV and stacker requirements.
- Multi-storey Underground Parking Lots: These projects need precise drainage slopes. With its 3D laser system, the equipment handles unidirectional/bidirectional slopes. The telescopic arm covers both side parking spaces from the lane center, reducing movement and improving slope accuracy.
- Reconstruction or Partial Reinforcement Projects: Limited space in operational workshops/venues hinders traditional equipment. The flexible arm reaches narrow/obstructed areas while the main machine stays outside, solving tight-space construction issues.
Typical Application Cases of Laser Concrete Leveling Machine
- Large Modern Logistics Warehouses: The floor requires extremely high flatness to support the high-speed operation of automated storage and retrieval systems (AS/RS). The telescopic arm laser leveling machine can complete continuous pouring and leveling of super-large floor slabs in one go, minimizing construction joints and ensuring the floor’s integrity and flatness tolerance within ±2mm/3m, which fully meets the strict requirements of AGV trolleys and stackers.
- Multi-storey Underground Parking Lots: Such projects not only have a large area, but also require precise control of drainage slopes. With its 3D laser control system, this equipment can easily realize complex unidirectional or bidirectional slope construction. The advantage of the telescopic arm is that it can cover the parking space areas on both sides from the central position of the lane, significantly reducing the equipment’s movement path and improving the overall linear accuracy of the slope surface.
- Reconstruction or Partial Reinforcement Projects: When carrying out partial floor renovation in already operational workshops or venues, space is often limited. Traditional large-scale equipment is difficult to enter. At this time, the flexible arm can extend into narrow or obstructed areas for operation, while the main machine stays outside, perfectly solving the construction problem of “working in a tight space”.
Daily Maintenance Points for Laser Concrete Leveling Machine
- Immediate Cleaning After Construction: After each operation, it is necessary to make full use of the design that allows the leveling beam to flip forward largely, thoroughly rinse and remove the adhering concrete slurry to prevent solidification from damaging the mechanism and hydraulic components.
- Regular Inspection and Oil Replacement: Replace hydraulic oil and filter elements strictly in accordance with the maintenance manual cycle. Pay special attention to checking the cleanliness and lubrication of the lifting guide column, which is the key to avoiding cylinder eccentric wear and oil leakage.
- Laser System Maintenance: Gently clean the lenses of the laser transmitter and receiver, properly protect them during construction and transportation to avoid collision. Regularly calibrate the plane accuracy of the laser system.
What to Do About Common Faults During Construction?
- Sudden Deviation in Leveling Accuracy: First, check if the laser transmitter has been moved or if the signal is blocked. Second, confirm whether the equipment receiver rod is firm and whether the wiring is loose. Restarting the laser system can sometimes solve temporary signal interference.
- Slow or Unresponsive Hydraulic Action: Check if the hydraulic oil level and oil temperature are normal. Troubleshoot whether the hydraulic filter element is blocked. Listen for abnormal noises from the pump station to initially determine whether the power is output normally.
- Weak Equipment Travel or Deviation: Check if all four-wheel drives are working, and if the solid tires are stuck by foreign objects. When constructing on soft foundations, ensure that the four outriggers have been stably leveled to avoid unstable machine body affecting travel.
Contact Us
- Get Consultation and Materials: Welcome to contact us through our official website or phone to obtain detailed technical parameters and case materials of the laser concrete screed machine.
- Book a Visit and Demonstration: We can arrange a visit to our equipment exhibition, and we also provide online live machine demonstrations to help you understand the working performance of the concrete laser screed intuitively.
- Full-cycle Project Support: We provide full-cycle support from operation training to construction guidance, and become your reliable floor construction partner.【WhatsApp/WeChat/Phone】+86 13837122632
