Boom concrete laser screed for sale

The laser screed for sale is a device designed for large-area concrete leveling. The equipment is light and will not cause additional pressure on the base. Compared with ordinary concrete screed machines, it reduces 50% of labor input and can improve construction efficiency by more than 3 times. This laser concrete leveling machine has become a standard for large-scale construction projects, especially suitable for scenes with high requirements for flatness, such as warehousing and logistics, industrial plants, etc. ​

Free Quote Now

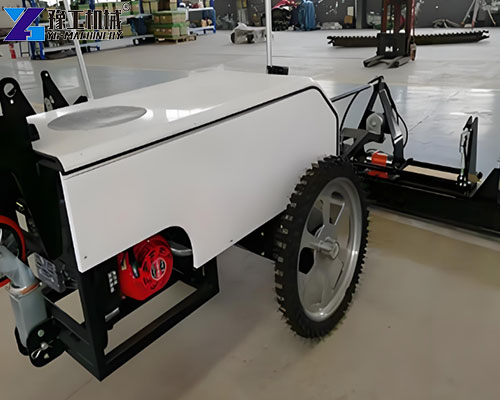

Laser Screed for Sale Parameter

Model	YGJX31	YGJX32	YGJX33	YGJX34
Engine
Model	Generator set	GX390 Electric start	GX390 Electric start	GX390 Electric start
Power	2.0kW	13hp/3600rpm	13hp/3600rpm	13hp/3600rpm
Fuel tank (L)	14.5	6.5	6.5	6.5
Running device
Drive	Motor	Hydraulic motor	Hydraulic motor	Hydraulic motor
Running mode	Infinitely variable speed	Handle control, stepless speed	Handle control, stepless speed	Handle control, stepless speed
Running speed(m/min)	0-36	0-45	0-65	0-45
Suggest working speed(m/min)	5	5	5	5
Screed head
Type	Self-leveling	Electric control, self-leveling	Self-leveling	Hydraulic control, self-leveling
Width	2500mm	2500mm	2500mm	2500mm
Exciting force	500N	500N	500N	500N
Vibration frequency	50Hz	50Hz	50Hz	50Hz
Laser control system
Control type	Microcomputer laser scan	Microcomputer laser scan	Microcomputer laser scan	Microcomputer control
Operation mode	Walk-behind	Walk-behind	Walk-behind	Walk-behind
Forward and reverse	Handgrip control, stepless speed-walking	Hydraulic control	Handgrip control, stepless speed-walking	Hydraulic control
Size and weight
Working size(mm)	2758*2622*1980	2740×2659×1980	2578×2643×1980	2780*2622*1980
Weight(kg)	295	365	380	410

Free Quote Now

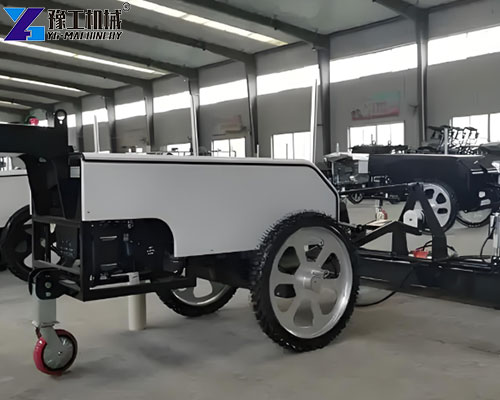

Concrete Laser Leveling Machine Structure​

The structure of the telescopic laser leveling machine is clear and easy to understand. The core components include a telescopic arm, a laser receiver, a leveling scraper, a vibration motor, and an operating console. The telescopic arm is made of high-strength alloy material and can withstand frequent telescopic wear. The laser receiver has a sensitivity of 0.1mm to ensure that the signal is captured without deviation. The width of the leveling scraper is adjustable, and with the vibration motor (vibration frequency 3000 times/minute), the density of the concrete is increased by 20%. The simple structure makes maintenance more convenient, and daily inspection only takes 10 minutes.​

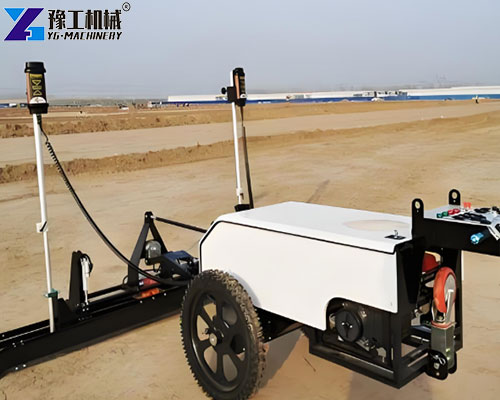

Working Principle of Concrete Screed Machine

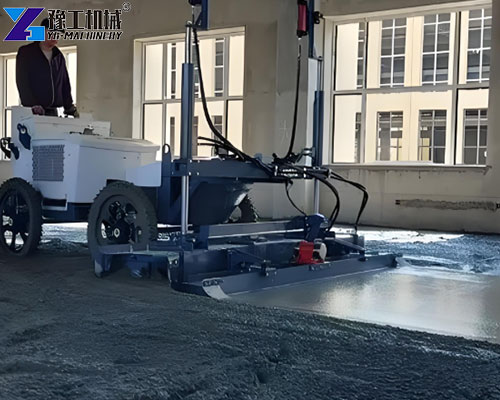

The laser transmitter establishes a horizontal reference plane outside the construction area, and the receiver on the equipment receives the signal in real time. The control system calculates the height deviation every 0.5 seconds and automatically adjusts the telescopic arm lifting and lowering. The concrete laser screed machine ensures that the leveling scraper always maintains the set height through such closed-loop feedback. During the leveling process, the vibration motor works synchronously to eliminate concrete bubbles. The whole process does not require manual repeated measurement, which is accurate and efficient. ​

Free Quote Now

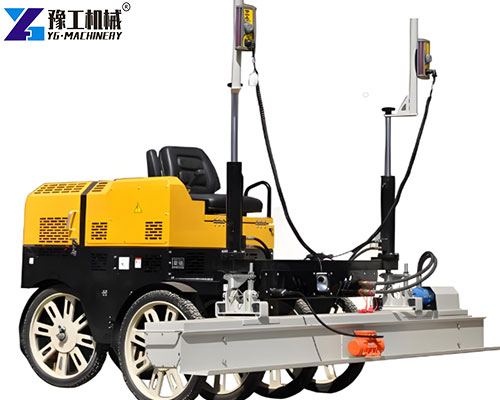

Hot-Selling Boom Concrete Laser Leveling Machine Models​ from YG

1. YG-CL300 is the hot-selling main force. This model of laser screed for sale is equipped with an American Breton engine, 22kw. The hydraulic auger paving reduces manpower, the leveling width is 2525mm/2955mm, and the leveling thickness is 50-300mm, which is easy to adjust.
2. The YG-CL300A concrete laser screed machine uses the imported engine Breton 22.8kw. The leveling width is 3000mm, the working efficiency is high, and the leveling thickness is 60-300mm. Users can adjust it according to their needs.
3. The weight of YG-ZP30 is only 5500kg, the telescopic arm length is 6000mm, the leveling width is 3100mm, and the leveling thickness is 100-450mm. ​One-button four-leg self-leveling, stable work, and good leveling effect.

4 Advantages of a Laser Concrete Leveling Machine

1. High efficiency, more than 5 times that of traditional manual labor, and 1500㎡ construction projects can be completed daily.
2. High precision, the error is controlled within 3mm, far exceeding the industry standard.
3. Strong intelligence, automatic leveling after one-button start, and reducing human errors.
4. To save costs, the amount of concrete per square meter is reduced by 5%. As a professional laser concrete leveling machine, it shortens the construction period by more than 30%.​

Free Quote Now

Successful Cases Sold to Australia​

YG’s laser screed for sale has been sold in batches to Australia. Local customers use it to build logistics warehouse floors. Facing Australia’s strict flatness standards, the equipment easily meets the standards. The 5,000 square meters of the site were leveled in just 5 days, 3 days ahead of schedule. Customer feedback: “It is much faster than the concrete screed machine used before, the flatness is fully up to standard, and the labor cost is reduced by half.” This case proves the international recognition of the equipment. ​

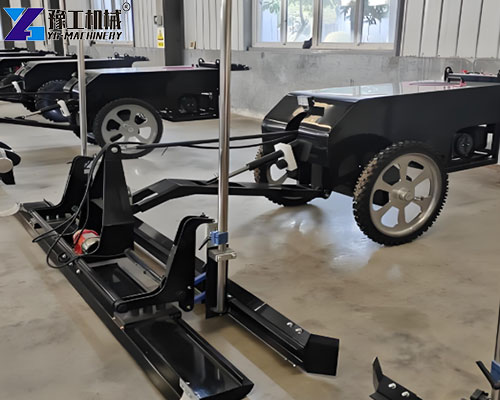

Boom Laser Screed Machine for Sale-YG Machinery

YG is a reliable manufacturer of telescopic arm concrete laser leveling machines. Its equipment is an indispensable tool for road construction. It is highly intelligent, and the operation interface is as simple as a mobile phone. Workers can learn it in half an hour. It is easy to use, and daily maintenance only requires checking the laser head and scraper without professional skills. High efficiency greatly improves the construction progress. As a professional concrete laser leveling machine brand, YG focuses on cost-effectiveness and reasonable prices. Whether it is a large project or a small project, you can find a suitable model. In addition, we also produce mortar spraying machines, wall plastering machines, concrete pumps, concrete mixers, road shot blasting machines, etc. Want to get a specific machine price? Fill in your requirements in the form below, and we will reply to you immediately.
