The mini concrete pump is also known as trailer mounted concrete pump. It can continuously press the concrete mix to the pouring work surface through the pipeline mechanical equipment. Concrete pumps mainly include components such as a hopper, hydraulic cylinder and piston, concrete cylinder, distribution valve, Y-pipe, flushing equipment, hydraulic system, power system, etc. YG gives you concrete pumps with different power. Click the button below to get the machine details!
Mini Concrete Pump Parameters
The main technical parameters of a mini concrete pump for sale include delivery displacement, outlet pressure, motor power, and distribution valve.
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Motor power | 22KW | 37KW | 45KW | 55kw |
| Maximum outlet pressure | 26mpa | 28mpa | 28mpa | |
| Maximum theoretical throughput | 16-18m³/h | 20-22m³/h | 35m³/h | |
| The maximum particle size of aggregate | ≤20mm | ≤30mm | ≤40mm | |
| Vertical conveying distance | 40m | 80m | 120m | 150m |
| Horizontal conveying distance | 80m | 140m | 2600m | 300m |
| Diameter of conveying pipe | 80mm | φ80 (100) mm | φ100 (80) mm | Φ125/100mm |
| Whole machine weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions | 3400x1200x1600mm | 3600x1500x1600mm | 4000x1500x1550mm | 4200*1700*1750mm |
4 Advantages of Trailer Mounted Concrete Pump
- Save pressure resistance: Concrete pump construction can solve the horizontal and vertical transportation and pouring of concrete at the same time, with a high degree of mechanization, requiring less labor and simple construction organization.
- Efficient and practical: Mini concrete pump for sale. Casting operations usually need to be carried out continuously, the construction efficiency is very high, and the work progress is fast.
- Good working together with steel can be made into reinforced concrete, expanding the scope of application.
- Excellent quality: The pumping process has strict requirements for the quality of concrete, and the concrete is not easy to segregate, to ensure the quality of the project.

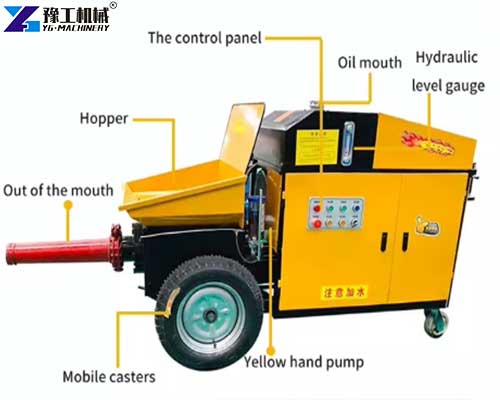

Small Concrete Pump Structure
This small concrete pump has a reasonable structure, a compact and small footprint. It is essential equipment for small construction occasions. It mainly includes the control panel, oil mouth, hydraulic level gauge, Hopper, Out of the mouth, Yellow hand pump, and Mobile casters. In addition to this small concrete pump, we also produce concrete pumps, concrete mixing and conveying pumps, etc. Click to learn more about the concrete pump!
Factors to Consider When Buying a Hydraulic Concrete Pump
- Conveying distance and height: According to the actual needs of the project, to determine the required conveying distance and height, choose the mini concrete pump for sale model that can meet the requirements.
- Concrete pouring volume: Calculate the total amount of concrete to be poured for the project and the daily pouring volume to ensure that the conveying capacity of the selected pump matches.
- Pumping pressure and displacement: Pumping pressure determines the distance and height of the concrete that can be transported; the higher the pressure, the stronger the conveying capacity.
- Reliability and stability: Choose a well-known brand and a product with a good reputation, check the user reviews, consult professionals, or refer to past project cases.
- Mobility and ease of operation: When the construction site often changes, you can choose a truck-mounted concrete pump. When the site is relatively fixed, the towed pump is more economical and practical.
Concrete Pump Machine for Sale from YG
Mini concrete pump for sale produced by YG include a variety of models. They are characterized by high efficiency, stability, and reliability and are suitable for various construction environments. Our concrete pumps are made of excellent materials and craftsmanship, with long service life and low maintenance costs. We also provide concrete mixing and conveying pumps, concrete mixers, elevating platforms, rebar straightening and cutting machines, rebar bending machines, curb sliding molding machines, shot blasting machines, polyurethane spraying machines, and so on. Contact us today to get machine prices!
