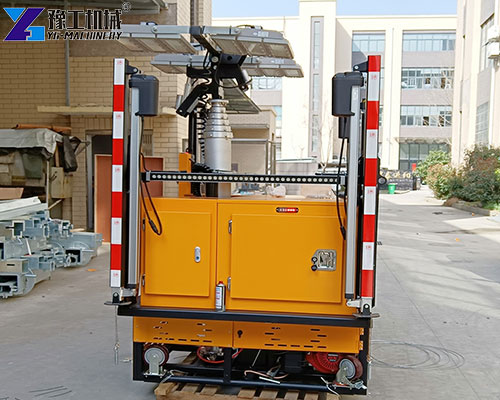

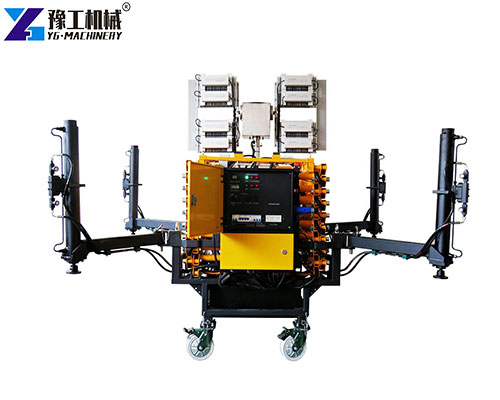

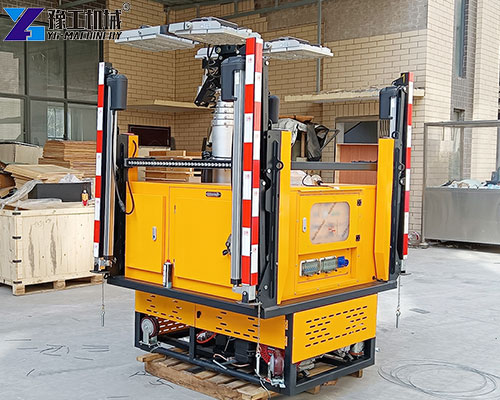

Mobile Lighting Plant–Pneumatic Lifting Model

If you are looking for a mobile lighting device that is truly “time-saving, labor-saving, and durable,” this pneumatic-lifting mobile lighting plant is built for high-intensity outdoor construction. Equipped with high-brightness LEDs and a pneumatic lifting structure, it can be deployed quickly and operates stably. Even in long-hour tasks, harsh weather, or frequent relocation, it consistently delivers reliable performance.【WhatsApp/WeChat/Phone】+86 13837122632

Mobile Lighting Tower for Sale Parameters

Technical Parameter	Specification
Rated Voltage	AC220V 50HZ
Lamp Power	4*400W LED
Generator Power	5KW
Tower Lifting Method	Pneumatic
Maximum Tower Height	7 m
Lamp Protection Rating	IP65
Start Method	Manual + Electric
Continuous Working Time	25h
Raising Time	90S
Lowering Time	120S
Lamp Movement	Vertical 0-130° / Horizontal 0-358° (manual)
Generator Set	Honda Four-Stroke Air-Cooled Electric Start
Displacement	389CC
Fuel Consumption	1.7 L/h, Fuel Tank Capacity 50L
Motor Output Voltage	AC220V 50HZ
Rated Output Power	5KW
Total Weight	<550KG
Guard Light Power	2*36W
Loading/Unloading	Push-rod lift, automatic loading/unloading

Pneumatic Lifting Structure of Mobile Lighting Plant

The equipment uses an advanced pneumatic lifting mast, providing significant advantages in the mobile tower lighting field:

• The mast can rise up to 7 meters and can be upgraded to 10 meters when needed, allowing light to cover longer distances—ideal for large-scale construction or rescue scenarios.
• The lamp head supports 0–130° automatic tilt adjustment combined with 0–358° manual horizontal rotation, allowing operators to easily fine-tune the lighting angle and achieve multi-directional illumination.
• The pneumatic lifting system takes only about 90 seconds to fully elevate, offering much higher efficiency than traditional hand-crank methods—particularly valuable for rapid-deployment needs in mobile lighting tower for sale applications.

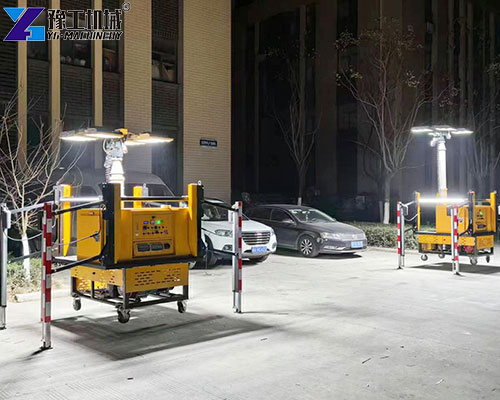

Mobile Lighting Plant’s High-Brightness Performance

As a professional-grade mobile lighting plant, it offers strong advantages in lighting output:

• The 4*400W high-power LED panels provide extremely high illumination, covering distances of over 120 meters. This not only lights up large construction areas but also ensures even brightness with fewer dark zones.
• The light source lifespan exceeds 10,000 hours, keeping brightness stable during long-term use and reducing maintenance frequency—ideal for teams working in continuous, high-intensity operations.
• The lamp head supports a combination of automatic tilt and manual rotation, enabling fast directional adjustments for various working surfaces and meeting the high flexibility requirements of portable led light towers.

Mobile Lighting Tower Price Core Value Points

For long-hour night operations, lighting continuity is a key factor when evaluating equipment value:

• Equipped with a Honda-brand engine, it delivers stable 3000-rpm power output; whether in high-temperature environments or under heavy load, it consistently maintains reliable power generation.
• The 50L large-capacity fuel tank supports up to 25 hours of continuous operation when full—ideal for overnight construction or emergency tasks, minimizing downtime caused by refueling.
• Besides its built-in power system, it also supports external 220V mains electricity. This allows extended lighting use in areas with fixed power supply, further reducing overall operating costs within the mobile lighting tower price range.

Weather Resistance of Mobile Lighting Plant

To ensure proper operation in harsh weather, the equipment features a highly durable design:

• With wind resistance up to Level 8, the structure remains stable even in strong wind or semi-open environments, eliminating safety concerns for the construction team.
• The lighting fixtures feature IP66 protection, offering excellent resistance to rain and dust. Even in heavy rain, muddy areas, or dust-filled sites, it continues delivering reliable illumination.
• Support legs include warning strobe lights, the control panel features induction lighting, and a user-friendly visible fuel gauge enhances nighttime safety—making it more competitive among portable led light towers.

Popular Functional Features of Mobile Lighting Tower for Sale

To achieve more efficient transportation and deployment, the equipment integrates several advanced intelligent structures:

• It uses an electric push-rod lifting mechanism, enabling the tower to load and unload itself onto a pickup truck automatically—greatly reducing manual labor and simplifying transport.
• With a body weight under 550KG, it is highly lightweight and can be towed or moved by multiple vehicle types, supporting fast cross-regional dispatch.
• The optimized structural layout allows quicker movement, making the device more flexible across various application scenarios.

Mobile Lighting Plant for Multiple Industries

Thanks to its strong lifting capacity, wide lighting coverage, and superior weather resistance, this tower is suitable for various outdoor industries:

• Highways, municipal road repair, bridgeworks, and city engineering—providing high-illuminance night lighting to ensure work quality and safety.
• Open-pit mining, tunnel excavation, geological exploration—acting as primary lighting in low-visibility environments, greatly improving operational visibility and efficiency.
• Emergency rescue, disaster response, power repair—scenarios requiring rapid deployment where the mobile lighting plant delivers large-area lighting in a short time.

Contact Us

If you are looking for a lighting device that is stable in performance, wide in coverage, and suitable for multiple scenarios, feel free to contact us anytime. We will provide professional, fast, and comprehensive technical and selection support:

• Instant quotation: Based on your construction needs, application environment, and budget, we offer precise quotations and configuration recommendations.
• Technical parameter consultation: For detailed specifications, compatibility, or customization options of mobile lighting tower for sale, our technical team provides one-on-one guidance.
• Shipping & after-sales support: We offer packaging, logistics, delivery, and long-term maintenance advice to ensure your portable led light towers remain in optimal working condition.
• Lead time & stock inquiry: Get real-time updates on mobile lighting tower price and inventory to help you deploy your projects without delay.

Contact us now to get a high-efficiency, reliable, and professional-grade mobile lighting solution tailored to your project needs!【WhatsApp/WeChat/Phone】+86 13837122632
