The mortar sprayer is a revolution in building construction, specialized in the application of all types of mortar materials. A cement mortar sprayer is built around mortar construction and is more specific in its performance and functionality. It replaces human labor with a mechanical power system, changing the old way of applying mortar with a trowel in hand. From delicate interior decorative mortars to strong exterior insulation mortars, it can spray with precision. Whether it’s for a small home remodel or a large commercial building, the mortar cement sprayer is of premium quality.
Mortar Sprayer Parameter
| Type | Electric | Diesel |
| Output | 3m³/h | 4m³/h |
| Power | 220v-380v/7.5kw | Diesel |
| Pressure | 3Mpa | 3Mpa |
| Conveying tube | 32mm | 32mm |
| Max. Aggregate size | ≤8mm | ≤8mm |
| Hopper volume | 80L | 80L |
| Air consumption | 0.3m³/min | 0.3m³/min |
| Weight | 320kg | 320kg |
| Applicable material proportion | 1:1:3 | |
| Conveying distance | Horizontal:50m Vertical:30m | Horizontal:50m Vertical:30m |

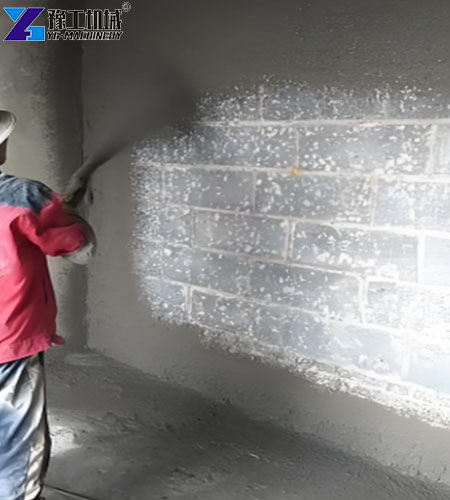

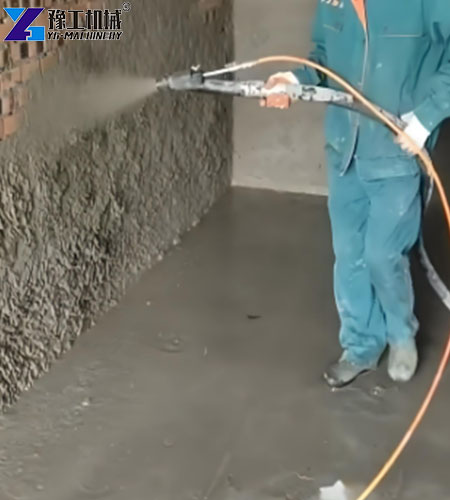

Applications for Mortar Cement Sprayer
The mortar cement sprayer is used in a wide range of applications.
- In-house renovation can be used to create a smooth and delicate plaster layer for walls or to spray sound-absorbing and heat-insulating mortar for ceilings.
- In the construction phase, it can be used for ground leveling layer spraying, quickly realizing a large area of ground leveling treatment.
- In the water conservancy project, it can be used for dykes, berms, reinforcement spraying, and enhance the stability of the structure.
- In addition, cement mortar sprayer can also play an important role in the renovation of old buildings, such as wall renovation and the addition of insulation.
How Does Cement Mortar Sprayer Work?
The mortar sprayer’s workflow is scientific and efficient.
- First, the crew pours well-mixed, construction-ready mortar into the machine’s hopper.
- Next, the machine’s power system is activated. The power system drives the screw or piston pumps, which, thanks to their special design, suck the mortar from the hopper and apply high pressure to it.
- The pressurized mortar then travels rapidly down the conveying pipe. The pipes can withstand high pressures and reduce the loss of mortar during transportation.
- When the mortar reaches the spray gun, the operator can adjust the spray pressure and flow rate, angle, and distance to uniformly adhere to walls, floors, and other construction surfaces.
Why Use a Mortar Cement Sprayer?
- In terms of efficiency, a mortar pump sprayer can spray hundreds of square meters per hour; a day’s work is equivalent to 6 – 8 skilled workers operating manually, which greatly shortens the construction cycle and allows projects to be delivered faster.
- In terms of construction quality, the cement mortar cement sprayer ensures uniform thickness with minimal errors. The flatness of the wall surface far exceeds that of manual application, effectively reducing rework due to quality problems.
- From a cost point of view, although it is necessary to invest in equipment costs in the early stage, it can significantly reduce labor costs in the long term, while reducing the labor intensity of workers.
Whether it is a large-scale construction project that pursues efficiency or a home improvement project that emphasizes quality, a mortar sprayer can be a key tool to enhance competitiveness.

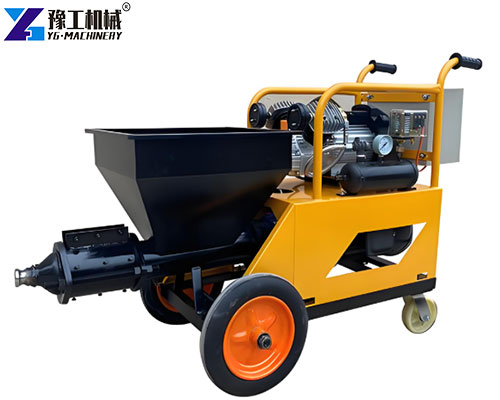

Structure of the Mortar Pump Sprayer
The mortar pump sprayer consists of several precision components working in tandem.
- The power system is the “power source” of the whole equipment, providing stable kinetic energy for the operation of the machine.
The hopper is reasonably designed, with a large capacity and is easy to refill, which meets the demand of continuous construction. - The pumping system, as the core component, realizes efficient and pressurized mortar delivery through the reciprocating movement of the screw or plunger;
- The conveying pipeline connects the various components, with smooth walls and low resistance to ensure that the mortar cement sprayer can meet the demands of the construction industry. Smooth inner walls and low resistance ensure smooth mortar transmission.
- The spray gun is the key to operation, equipped with a variety of nozzles to adjust the shape and coverage of the mortar spray according to different construction needs.
Trusted Mortar Spraying Machine Factory- YG Machinery
The mortar sprayer breaks the limitations of traditional construction with its innovative technology. It is dedicated to mortar spraying, replacing manpower with mechanical power, and operates accurately and efficiently from interior wall decoration to exterior wall insulation. It is widely used in many fields such as decoration, construction, and water conservancy. As a professional manufacturer, YG has excellent product performance and perfect after-sales service. If you want to make construction easier and more efficient, choose YG’s cement mortar cement sprayer to start a new experience of convenient construction! We also provide wall plastering machines, GRC sprayers, polyurethane sprayers, concrete mixing and delivery pumps, etc. Tell us your needs and get the latest machine quotes!
