Rebar thread rolling machine

Rebar thread rolling machines are commonly used in construction. Their primary function is to create threads on the ends of rebar, allowing different rebar to be securely fastened together using connectors. They can be found in bridges, buildings, subways, and other projects. With them, rebar connections are fast and secure, making them an indispensable tool for construction teams. If you need to connect rebar on a construction site, a rebar thread rolling machine is an ideal choice. Learn more now.

Free Quote Now

Rebar Thread Rolling Machine Parameter

Model	YG28-40	YG28-80	YG28-150	YG28-185	YG28-200
Max rolling pressure	120KN	150kn	150kn	180kn	200kn
Hydraulic diameter	5-36MM	6-42mm	6-48	10-60mm	14-80mm
Rolling wheel diameter	120-170MM	120-170mm	120-170mm	175-220mm	175-220mm
Max width of rolling wheel	110MM	110MM	110MM	150mm	150mm
Spindle center distance	120MM	120MM	120MM	150-300mm	150-300mm
Rolling wheel aperture	54hole	54hole	54hole	75hole	75hole
Hydraulic power	4kw	2.2kw	2.2kw	3kw	5.5kw
Main motivation	4kw	5.5kw	7.5kw	11kw	11kw
Spindle speed	36-78/min	36-78/min	36-78/min	20-64/min	20-64/min
Spindle tilt angle	±5°	±5°	±5°	±10°	±10°
Thread length	No limited	No limited	No limited	No limited	No limited
Dimensions	1.4*1.2*1.4m	1.48*1.33*1.44m	1.47*1.33*1.44m	1.78*1.73*1.43m	1.78*1.73*1.43m
Weight	1100kg	1700kg	1800kg	2000kg	2600kg

Free Quote Now

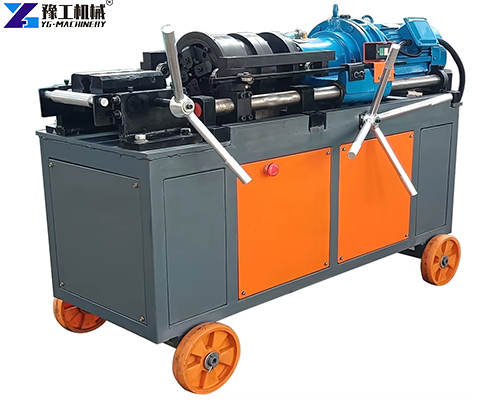

Thread Rolling Machine Price

The price of a rebar thread rolling machine is not fixed and is affected by many factors.

1. First, consider the size and model of the machine. Small thread rolling machines are smaller and have relatively simpler functions, so they’re more expensive. Fully automatic thread rolling machines, on the other hand, offer automated feeding and processing, eliminating significant labor costs and naturally commanding a higher price.
2. Furthermore, the quality of the machine’s materials and components is crucial. Thread rolling machines made of high-strength steel and imported core components are more expensive, but they’re also durable and less prone to malfunctions.
3. Different manufacturers’ manufacturing processes and after-sales service can also affect prices. When purchasing, don’t just consider price; consider your specific construction needs, such as the daily processing volume and whether automated features are necessary. This way, you can choose the most cost-effective equipment. Want to know which model is right for you? Feel free to contact us.

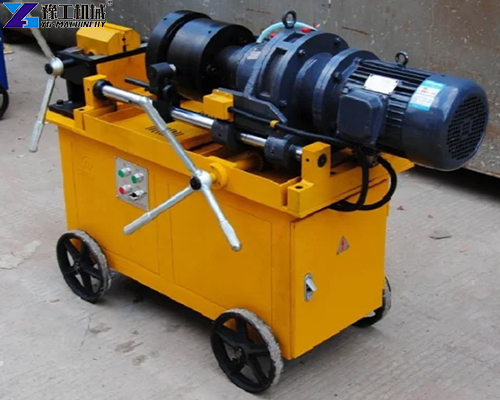

How to Use a Hydraulic Rebar Thread Rolling Machine

Using a rebar thread rolling machine isn’t complicated, but preparation is crucial.

1. Inspect the rebar. Clean any rust and oil from the ends. If there are any bends, straighten them first, as this will affect the thread quality.
2. Adjust the machine. Replace the appropriate rolling wheel according to the rebar diameter and adjust the thread rolling length and depth. Beginners can refer to the specifications in the manual.
3. Start processing. Insert one end of the rebar into the machine’s slot and press the power button. The machine will automatically rotate the rolling wheel, slowly pressing the thread into the rebar. Hold the rebar steady during this process to prevent it from shaking. After the machine automatically stops, turn off the power button and remove the rebar.
4. Finally, check that the threads are flat and the depth is appropriate. If any problems arise, fine-tune the parameters and try again. With practice, you’ll quickly become proficient.

Free Quote Now

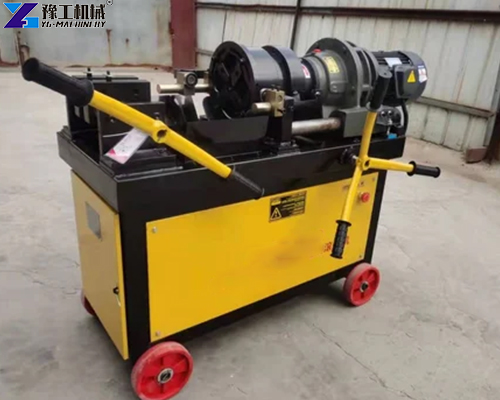

Automatic Thread Rolling Machine Maintenance

Proper maintenance will ensure long-term stable operation of the rebar thread rolling machine and reduce malfunctions.

1. Clean the machine after each use. Use a brush to remove any scrap metal from the rolling wheel, then wipe the machine body with a cloth to prevent scrap metal from accumulating and affecting the next use.
2. Next, lubricate the machine’s gears, bearings, and other rotating parts to reduce wear and ensure smoother operation. Remember to use a dedicated machine lubricant.
3. Regularly check for loose parts, such as the screws securing the thread rolling wheel. Tighten any looseness promptly.
4. Store the machine in a dry location to avoid rain, moisture, and rust.

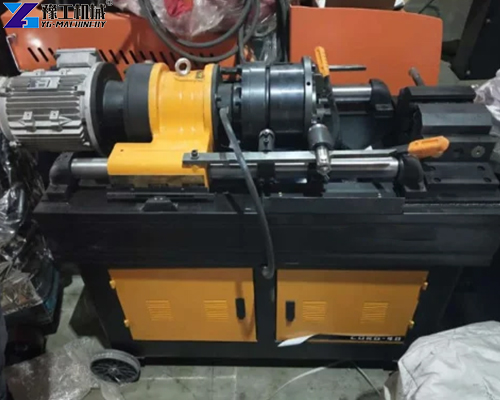

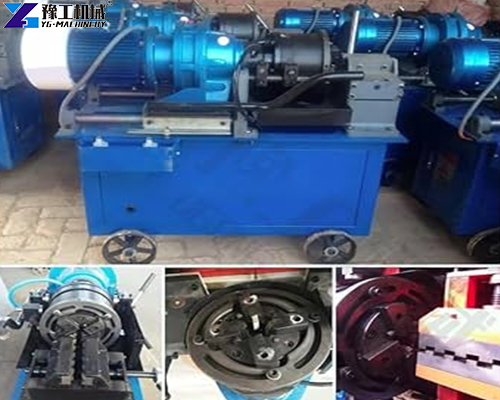

Thread Rolling Machine for Sale-YG Machinery

YG has specialized in the production of rebar thread rolling machines for many years. We offer a comprehensive product line, ranging from small to fully automatic. Our machines utilize thickened steel for the body and high-strength alloys for the thread rolling wheels. The resulting threads are highly precise, and the machines are stable and resistant to failure. If you’re looking for a reliable rebar thread rolling machine, consider YG’s products. In addition, we also produce rebar straightening and cutting machines, rebar couplers, CNC hoop bending machines, and other related equipment! Contact us now for a personalized quote and user manual. Don’t hesitate to contact us!
