The road roller compactor can easily navigate narrow country roads and construction site passages. They come in two drive modes: walk-behind and ride-on. Walk-behind rollers are ideal for working in extremely small spaces, while ride-on rollers are more labor-efficient and less fatigue-prone even during continuous operation. They are available in single and dual-drum configurations. Each unit is equipped with a small diesel or gasoline engine, providing stable power. Click here to get a discounted roller!
Road roller compactor parameter
| Model | YG-600S | YG-880 | YG-850 | YG-880 |
| Power | 5.5HP | 25HP/20HP | 6.0HP | 25HP/20HP |
| Walk Speed | 2.4km/h | 0-5KM/H | 0-4km/h | 0-5KM/H |
| Climbing Capacity | 25% | 30% | 30% | 30% |
| Static Linear Load | 45n/cm | 45n/cm | 45n/cm | 45n/cm |
| Exciting Force | 20KN | 50KN | 20KN | 50KN |
| Vibration Frequency | 70HZ | 70HZ | 70HZ | 70HZ |
| Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Water Tank | 15L | 15L | 15L | 15L |
| Hydraulic Oil Tank | 3.6L | 19L | 3.6L | 19L |
| Engine Model | HONDA GX160 | GX390 | HONDA GX270 | GX390 |
| Steel Wheel Size | 426x600mm | 800x850mm | 580x700mm | 800x850mm |
| Package Size | 1050x900x1200mm | 2100*1000*1650 mm | 1550x900x1200mm | 2100*1000*1650 mm |
| Weight | 330kg | 1000kg | 750kg | 1000kg |
How does a mini road roller work?
The operating principle of a road roller compactor is straightforward. Once started, the steel drum rotates. The weight and pressure of the drum compacts loose materials. For example, when compacting soil, the drum repeatedly rolls, reducing the gaps between soil particles and making them more compact. Some mini road rollers also have a vibration function, which further compacts the material.

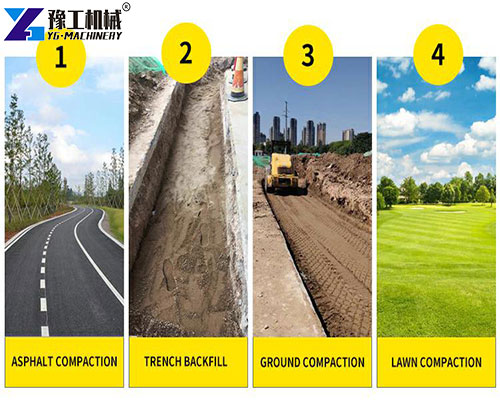

What are the applications for ride on road roller?
Mini road rollers have a wide range of applications.
- When constructing rural roads, it can compact the roadbed and pavement, even on roads as narrow as 3 meters.
- When paving asphalt parking spaces in residential communities, it can compact the curbstones closely to prevent loose corners.
- In garden construction, compacting the soil beneath lawns can prevent subsequent collapse, and it can even be used to flatten the gravel paving of landscaped trails.
- In municipal maintenance, it can be used to compact backfill after excavation of damaged roads to reduce subsidence.
- When building houses in rural areas, it is indispensable for foundation compaction and soil preparation before hardening the yard.
- Even in farm construction, it can compact the ground in feed storage areas and reinforce the edges of siloes.
- When paving flagstone roads in scenic areas, it can gently press the flagstones to fit the ground without crushing the stone.
What are the core advantages of a mini road roller machine?
- The first advantage of a road roller compactor is its flexibility. It can easily access narrow alleys, corners of construction sites, and even for partial repairs in indoor parking lots.
- Its second advantage is efficiency. A small roller can compact 200 square meters of ground in an hour, equivalent to the work of 10 workers using a tamping machine, saving significant time.
- Its third advantage is its ease of operation. No extensive training is required; anyone can easily master it simply by reading the manual.
- It also has low fuel consumption, consuming only 2-3 liters per hour, more than half the fuel consumption of large equipment.
- Maintenance is also easy. Basic maintenance, such as changing the engine oil and checking tires, can be performed by the user themselves, resulting in maintenance costs 40% lower than for a medium-sized roller.
- Its light weight allows it to be transported by ordinary trucks, eliminating the need for specialized trailers. This allows for greater flexibility in relocation, making it ideal for small and medium-sized projects.
YG’s small road rollers are popular with many international customers.
- John, a road maintenance contractor from the United States, said, “YG’s ride-on rollers are very comfortable to operate. The compaction effect is better than what I used before, and they’re easy to maintain, saving me a lot of time.”
- Maria, a Mexican owner of a small construction company, commented, “We use YG’s small road rollers to repair rural roads. They’re flexible and efficient, even in narrow areas, and our customers are very satisfied.”
- Andrei, a Russian contractor for municipal engineering, said, “YG’s small road rollers can operate even in low temperatures and are highly durable, making them a great helper on our projects.”
Road roller compactor for sale-YG Machinery
YG has been specializing in the production of road roller compactors for many years and continuously improving its technology. Its products have passed multiple quality certifications and undergo rigorous testing from raw materials to finished products. YG also provides comprehensive after-sales service, promptly resolving customer issues. YG mini road rollers offer reliable performance, a wide range of applications, and are recognized by customers worldwide. In addition to road rollers, we also produce road sweepers, snowplows, lifting platforms, curb slipformers, and other equipment! If you’re looking for suitable compaction equipment, please contact us for more product information, and we’ll provide you with a satisfactory solution.
