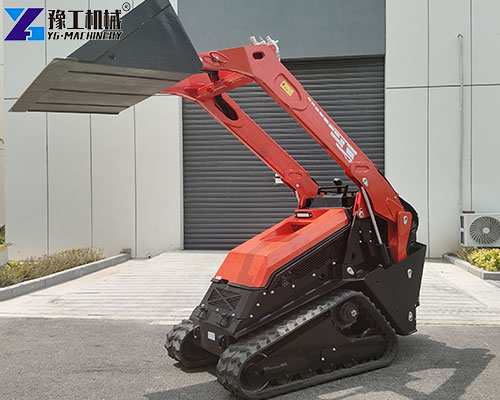

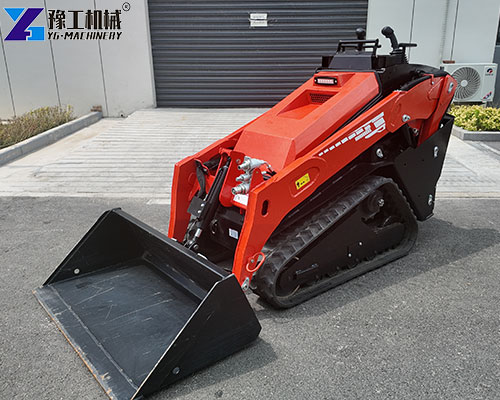

Stand on mini skid steer perfectly combines a compact size with powerful functions, allowing the operator to drive in a standing position. While gaining a wide field of vision, it can also quickly enter and exit various confined areas, making it a powerful assistant for scenarios such as warehouses, factories, gardens, pastures and indoor renovations.【WhatsApp/WeChat/Phone】+86 13837122632
Mini Stand up Skid Steer Parameters
| MODEL | V1000 | S370 |
| Basic performance parameters | ||
| Bucket width | 1235mm | 1070mm |
| Distance from ground | 200mm | 122mm |
| Gradeability | 25° | 25° |
| Maximum loading height | 2140mm | 1925mm |
| Maximum unloading height | 1522mm | 1373mm |
| Maximum height | 2794mm | 2415mm |
| Minimum height | 1548mm | 1208mm |
| Bucket capacity | 0.19m³ | 0.07m³ |
| Bucket loading quality | 650kg | 210kg |
| Size | ||
| Dimensions | 2691*960*1548mm | 2138*1070*1208mm |
| Include Bucket length | 2691mm | 2138mm |
| Does not include Bucket length | 1981mm | 1528mm |
| Engine | ||
| Brand | YANMAR/KUBOTA | B&S |
| Model | 3TNV80/D1105 | 25T2 |
| Rated power | 17.8kw/18.5kw | 8.6kw |
Advantages of Stand on Mini Skid Steer
Compared with traditional ride-on equipment, the design of Stand up mini skid steer brings multiple unique advantages:
- Ultimate space adaptability: The whole machine has a compact structure and an extremely small turning radius. Whether it is between warehouse shelves, inside factory workshops, or low tunnels or greenhouses, it can shuttle flexibly and easily complete operation tasks in areas inaccessible to large-scale equipment.
- Both operational visibility and flexibility: Standing driving provides the operator with a wider field of vision, allowing a clear view of the surrounding environment and operation targets. Combined with its agile skid-steering capability, it achieves precise positioning and greatly improves operational safety and efficiency.
- Quick conversion and high cost performance: Compared with ride on mini skid steer, the stand-on model is usually lighter, has advantages in purchase and operation costs, and also has strong multi-functional attachment expansion capabilities.
Power and Hydraulic System of Stand on Mini Skid Steer
An excellent mini skid steer is inseparable from a reliable heart and nerves.
- High-efficiency power core: Equipped with well-known brand engines such as YANMAR and KUBOTA, it not only has abundant power to provide continuous and strong power, but also takes into account low fuel consumption and low emissions, ensuring the economy and environmental protection of long-time operation.
- Responsive hydraulic system: Adopting a dual hydraulic pump system, it provides stable power output for walking and attachment operation respectively, improving the reliability and action accuracy of the whole machine. The selected high-sealing hydraulic cylinders and thickened hydraulic oil pipes ensure strong lifting, stable operation, prevent leakage, and significantly improve durability.

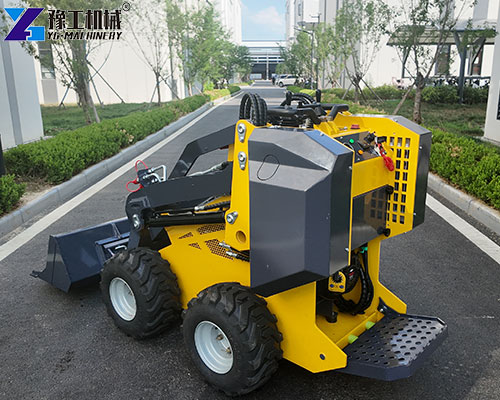

Quick-change Attachment System of Little Skid Steer
Through standardized hydraulic quick-change interfaces, one mini skid steer can change its function in a few minutes:
Quick attachment replacement: Switch from standard buckets to various professional attachments such as breakers, sweepers, log grapples, cold planers, drills, etc. This means that it can not only carry out material handling, excavation and backfilling, but also complete diversified tasks such as crushing, cleaning and material transportation, realizing multi-purpose of one machine and greatly expanding the application scope and return on investment.
Humanized Design Considerations of Little Skid Steer
We have devoted a lot of efforts to safety and operation experience:
- Stable safety foundation: The carefully designed low center of gravity and wide wheel track significantly improve the stability of the equipment when working on rough ground or during lifting operations, effectively reducing the risk of rollover.
- Humanized operation platform: The integrated multi-functional operation platform has clear instrument data, sensitive control handles and clear logic, so even novices can quickly get started. The specially designed sturdy foot pedal provides a comfortable and safe space for standing operation.
- Comprehensive operation protection: The high ground clearance enhances passability and reduces chassis collision. Eye-catching safety signs and standard-compliant protective structures build another safety line for operators.
In summary, Stand on mini skid steer has established an irreplaceable position in the segmented operation field with its unparalleled space adaptability, strong multi-functional expansion capability and stable and efficient working performance. Whether it is municipal maintenance and landscaping that require frequent station conversion, or indoor engineering and facility agriculture that have strict requirements on equipment size, choosing a suitable mini skid steer will be a key decision to improve work efficiency and reduce comprehensive costs.【WhatsApp/WeChat/Phone】+86 13837122632
